OEM/ODM Acceptable, Manufacturer of Kiosks.
 |
| Place of Origin: | Guangdong, China |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | With standard packaging or according to customer's request |
| Delivery Time: | 15~20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 per month |
| HDD: | Support Max. 1 TB Hard Disk | Standard: | Compliant With Most Banking Standard Specifications, Including CEN/XFS, NDC, DDC, ISO8583, Etc. |
|---|---|---|---|
| OS: | Microsoft Windows 10 | CPU: | Support Intel Core I3/i5/i7 CPU |
| RAM: | Support Max. 16GB Memory | Communication: | RJ45, WIFI, X.25, Etc |
| Power: | AC 220V~240V,50~60 Hz, Surge Protection, UPS(opt.) | Cassete: | 4 Recyclable Units, 1 Reject/retract Unit |
| Capacity: | 4 Recyclable Units Support To Extend To Max. 8 Recyclable Sub Units, The Recyclable Unit Supports Max. 3400 Banknotes, The Reject Unit And The Retract Unit Support Max. 2250 Banknotes. Up To 300 Banknotes Per Transaction, 12 Banknotes/second, | OCR: | Support Banknote Serial Number Recognition (opt.) |
| Highlight: | Cash Recycling Lobby CRM Money Counter,ATM System Lobby CRM Money Counter,High Security Lobby CRM Money Counter |
||

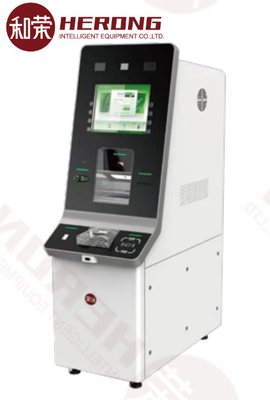

High Security Lobby CRM Money Counter ATM System Cash Recycling Machine R06L
Advantages:

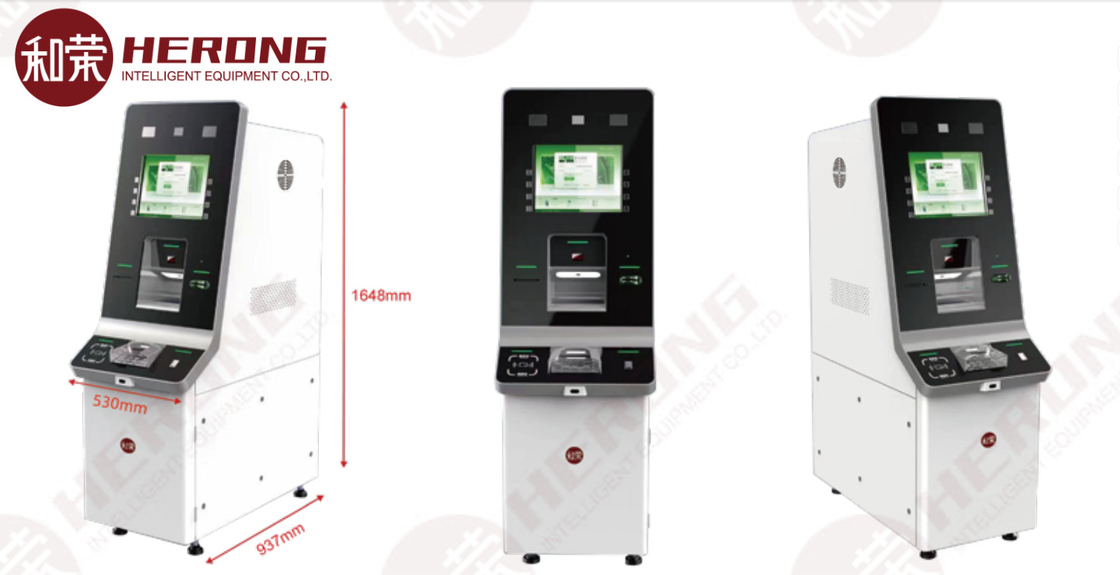

| Dimensions | Width | 530mm |
| Height | 1648mm | |
| Thickness | 937mm | |
| Net Weight | 500kg | |
| Backing plate and carton packaging weight | 520kg | |
| Backing plate and wood packaging weight | 550kg |
Summary:
|
Standard |
|
Compliant with most banking standard specificatons, including CEN/XFS,NDC,DDC,ISO8583,etc. |
|
Security |
Safe |
UL 291 Level 1 Compliant |
|
Lock |
Mechanical combination lock |
|
|
Cameras |
Binocular recognition camera(opt.), Ordinary |
|
|
Sensors |
Shock sensor(opt.), Infrared sensor(opt.), Smoke sensor(opt.), Light sensor(opt.) |
|
|
Others |
Explosion-proof glass, PIN Pad shield, DVR(opt.) |
|
|
Controlling Unit |
OS |
Microsoft Windows 10 |
|
CPU |
Support Intel Core i3/i5/i7 CPU |
|
|
RAM |
Support Max.16GB memory |
|
|
HDD |
Support Max.1TB hard disk |
|
|
Communication |
RJ45, WIFI, X.25, etc. |
|
|
Power |
AC 220V~240V,50~60 Hz,Surge protection,UPS(opt) |
|
|
Cash Processing Unit |
Cassette |
4 recyclable units, 1 reject/retract unit |
|
Capacity |
4 recyclable units support to extend to Max. 8 recycla ble sub units, the recyclable unit supports Max. 3400 banknotes, the reject unit and the retract unit support Max. 2250 banknotes. Up to 300 banknotes per transaction, 12 banknotes/second, |
|
|
OCR |
Support banknote serial number recognition(opt.) |
|
|
Customer Interface |
Display |
17” TFT color LCD touch screen; Privacy filter (opt.); Sunlight readable |
|
Keypad |
PCI compliant, 4*4 metal encryption PIN pad, 2*4 function keys, Dust proof/water proof/vandal resistant, Support customizable panels, Support braille key |
|
|
Card Reader |
EMV certified, Motorized card reader; DIP card reader (opt.),Contact less smart card reader/writer (opt.), Card retract (opt.), Card return on power failure (opt.), Anti-skimming design (opt.) |
|
|
Printer |
Graphic thermal receipt printer, E-journal printer, Journal printer (opt.) |
|
|
Light |
Top light, Device guide light, Status indicator light, LED electronic screen light(opt.), Logo light(opt.) |
|
|
Others |
Bar code reader, Finger print reader, Customer awareness mirror, Speaker, Audio jack |
|
|
Additional Module |
|
Power amplifier board, USB extension board, Fan, Heater(opt.) |
|
Environment |
Work Environment |
Temperature:-10℃~+65℃(+14℉~+149℉)(Indoor),-35℃~+75℃(-31℉~+167 ℉)(Outdoor with heater) Humidity: 20%~85%(No condensation) |
|
Storage Environment |
Temperature: -20℃~+85℃(-4℉~+185℉) Humidity: 5%~90%(No condensation) |
RFQ:
Q:what’s the condition of your product?
A:Generally we can provide 4 conditions:new original,new generic,original used and original ref.
Q:Is your products have a warranty?
A:Yes.Every product has a warranty,normally it is 3 months.
Q:Do you have your own factory?
A: Of course yes.We have our own factory,we can build the molds and produce parts by ourselves.
Q:What’s the lead time of your product?
A:Normally it is 3-7 days after payment.The lead time is related to the quantity you ordered.
