SDK temperature kiosk time attendance face recognition terminal with temp measurement system
Product Description
SDK temperature kiosk time attendance face recognition terminal with temp measurement system
|
|
Part No.
|
ZH-TZ158W
|
|
Processors
|
Intel J1900 2.0Ghz (i3/i5/i7 Optional)
|
|
Memory
|
4GB RAM Support upgrade to 8GB
|
|
Storage
|
MSATA 64GB/128GB/256GB
|
|
Operating Systems
|
Win XP, Win7/8/10,
|
|
Internet
|
Realtek 8103EL 10/100M Support diskless boot
|
|
|
Part No.
|
ZH-TZ158A
|
|
Processors
|
RK3288(RK3399 Optional)
|
|
Memory
|
2GB RAM Support upgrade to 4GB
|
|
Storage
|
MSATA 16GB Support upgrade to 32GB
|
|
Operating Systems
|
Android 7.1,Support Google Play
|
|
Internet
|
Realtek 8103EL 10/100M Support diskless boot
|
|
|
Main screen
|
15.8inch LCD Screen,Resolution:1080*1920
|
|
|
None or 15.8inch LCD Screen, Resolution:1920*1080
|
|
Brightness
|
220cd/m2
|
|
Touch Screen
|
True flat capacitive touch screen, multi-touch
|
|
|
Serial Port(Com port)
|
1×COM(2-4 optional)
|
|
Display
|
1×VGA
|
|
USB
|
6(Front 2,Back 4)
|
|
LAN
|
1×Gigabit Ethernet ,RJ 45
|
|
Audio
|
1×Line out
|
|
HDMI
|
1×HDMI(Optional)
|
|
Power Supply
|
Adaptor 12V/5A
|
|
|
Dimension(L×W×H)
|
460*250*570(mm)
|
|
Package Size(L×W×H)
|
466*290*640(mm)
|
|
Net Weight
|
10.5KG
|
|
Gross Weight
|
12KG
|
|
|
Wifi
|
2.4G/5.0G;802.11a/b/g/n
|
|
Bluetooth
|
Bluetooth 4.0
|
|
Printer
|
Built in 80mm thermal receipt printer with auto cutter
|
|
Scanner
|
Support 1D/2D barcode and QR code
|
|
Card Reader
|
IC/ID/RFID/NFC
|
|
Camera
|
3D structured light camera
|
|
4G Module
|
Customized according to customer
|
|
Speaker
|
Built-in high-fidelity speaker
|
1 Machine for 2 uses
self check out cashier
Dual screen dual touch, easy to check out
It can be a smart helper guiding customers in self- checkout whille letting the shop assistant minding other workers.
Dual screen (1 landscape and 1 portrait)
Single screen(Portrait)
Modular Design, multiple styles
Dual screen (2 landscape)
Single screen(landscape)
Main screen for self check out
Wall mounted display for Cashier or Kitchen
Created specifically for the epidemic era, Avoid direct contact
All in one design
58mm/80mm thermal receip printer
High- sensitivity scanner
Optional: NFC/ Speaker/Microphone etc.
Flexible external equipment
Support connect cash drawer/ scanner/ scale/ card reader/ camera
Adjustable touch screen Angle
Easy to adjust display angle for customer best view position, flexible angle adjustment
Support windows OS or Android OS
- Compatible with multiple software
- Provide SDK documents for secondary development
- Support google play

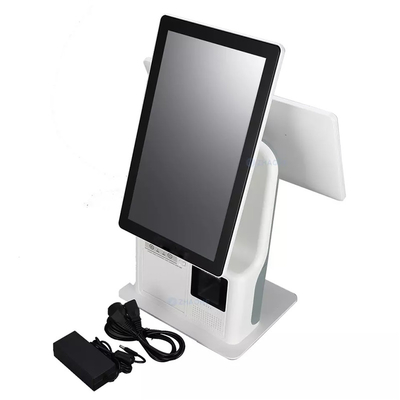

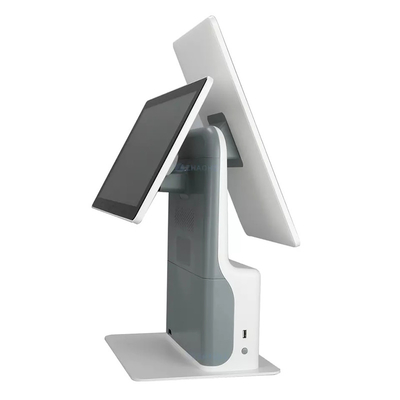

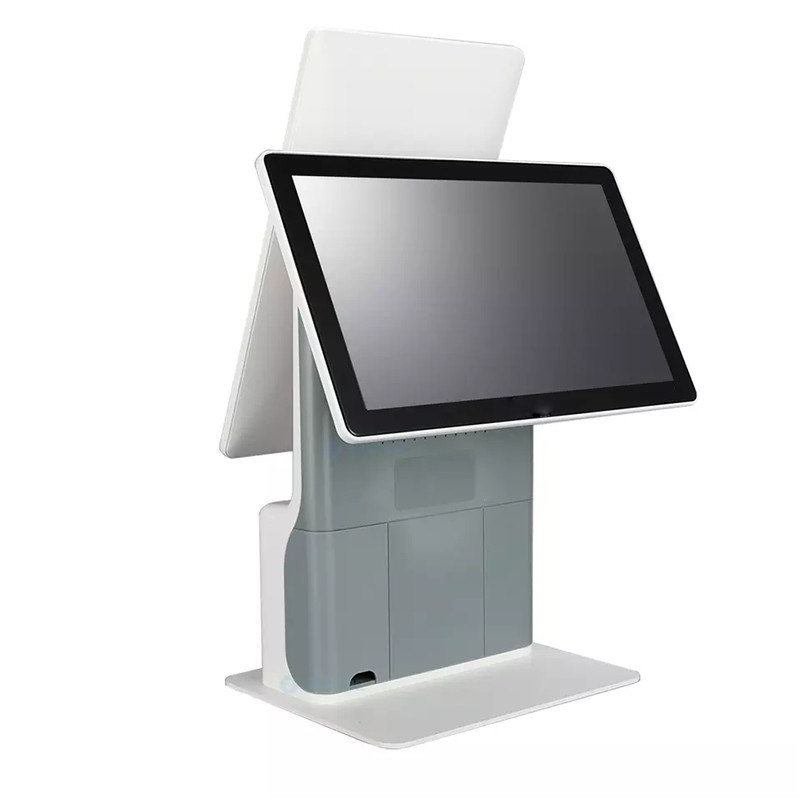

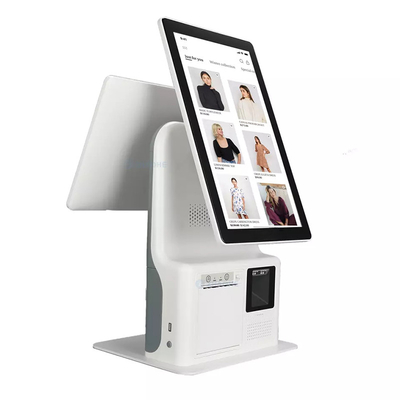

Product show
Company information
Herong Intelligent Equipment Co., Ltd. is a professional manufacturer integrating R&D, production, assembly, sales and service. Herong was established in 2016 and is located in Dongguan City, Guangdong Province, China.
We are proficient in various types of plastic molds and CNC hardware processing. We also specialize in vending machines, ATM/VTM machines, self-service kiosks, all other functional kiosks and their parts. Our factory has advanced mold and injection molding equipment, and has set up its own CNC machining center, which can perfectly undertake ATM accessories, auto accessories, household appliances, daily necessities, electronic products, medical equipment and other projects. We have professional equipment such as CNC punching machine, bending machine, laser cutting machine, spraying line, dust free workshop and all other related equipment. We can provide ODM/OEM service for customers. All the products we offer are certified by ISO9001, SGS, RoHs, CE, FCC, etc. For logistics, we can choose DHL, UPS, FedEx, sea or air, etc., it is up to our customers.
By continuously improving product quality and providing excellent service, we have maintained a good cooperative relationship with customers in more than 130 countries around the world.
Factory
Warehouse
RFQ:
6. Can I have my own logo on the products, do you offer product OEM?
Yes! We can put your logo on the product and we do OEM for customers. But it requires a certain quantity and the cost need to be
added separately.
7. What kind of certificate you have?
CE, FCC and RoHS as standard.Some products approved EMv&PCI,CB,CCC certificates.
8. Do you provide software?
We don't provide software,As a hardware producer, We suggest you to get software in local because of the using habit.
9. What about the after-sale service?
We provide full technical support on our products, if there is a machine doesn’t work,a free parts will be sent to you by free to replace,if it still not working, we will send you a new one.
