OEM/ODM Acceptable, Manufacturer of Kiosks.
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | HE |
| Certification: | CE/CCC/FCC/ROHS/ISO9001 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing (Foam and Wooden Crate) |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per month |
| Name: | 24 Hours Cash Vending Machine Self Service Cash Deposit Machine Money Kiosk | Packaging: | Customized |
|---|---|---|---|
| Graphic/ Photo: | Customized | Deviation Of Erro: | ±<1.0% |
| Ensurance: | 3 Mouth | Size: | Standard |
| Color: | White | Function: | Standard/ Customized |
| Looking: | Standard/ Customized | ||
| Highlight: | 250cd/M2 ATM Cash Machine,Ip65 ATM Cash Machine,Thermal Printing ATM Cash Machine |
||

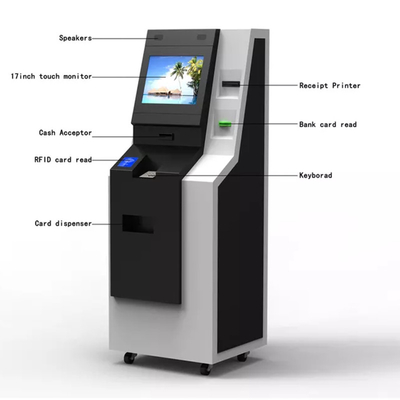

24 Hours cash vending machine Self Service Cash Deposit Machine Money Kiosk
Product Description
Deploy these indoor units in the branch or at other retail locations to bridge the physical and digital ecosystems for consumers, and empower them to access more financial services when, where, and how they’d like in a smaller footprint.
| Components | Details | |
| PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
| RAM | 2GB /4 GB / 8GB | |
| HDD | 500G | |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
| PC Power Supply | HUNTKEY/Great Wall | |
| LCD monitor | Screen Size | 17 inch/19inch ( optional from 8inch to 65inch) |
| Brightness | 250cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Backlight tube life | more than 40,000hours | |
| Max. resolution | 1280×1024 | |
| Touch screen | Screen Size | 17/19 inch Diagonal ( optional from 8inch to 65inch) |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| Bank/Credit Card Reader | Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
| Power Voltage | DC 24V±5% | |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
| Encrypted Pinpad | Keylift~span | 2,000,000 cycles |
| Key force | 2~3N | |
| Key trip | >2.5mm | |
| Protection level | ip65 | |
| Cashcode Bill acceptor | Validation Rate | 96% or higher |
| Banknote Insertion | Four-way | |
| Escrow | One banknote | |
| Capacity | 1000 notes Max | |
| Coin Acceptor | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
| Detection ability of counterfeit Coins | with high detection ability of counterfeit coins | |
| Accepting Speed | 2 Coins/Sec | |
| Supply Voltage | 10V-16V DC | |
| Epson receipt thermal printer | Autocutter | included |
| Technology | Thermal printing | |
| Paper width | 80mm | |
| Printing speed | 150mm/s | |
| Data buffer | 4KB | |
| Interface | RS232 ,USB | |
| UPS | Input voltage | 145-290va |
| Output voltage | 200-255va | |
| Max time for supplying a single PC | 3~20minutes (for single PC) | |
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz | |
| AC input voltage range | 100~240VAC | |
| Frequency | 50Hz to 60Hz | |
| Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
| Operation System | Windows 7 or Windows XP operation system without license | |
| KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
| Packing | Security Packing method with bubble foam and wooden case | |
More integrated: A common platform supported by leading software and services ensures more seamless integration into your organization's channel ecosystem.
More available: DN AllConnect Data Engine is paired with our globally proven, highly reliable dispensing & recycling engines to maximize availability.
More efficient: New functionality offers new opportunities to migrate transactions and engage consumers or business customers through the self-service channel.
More future-ready: Now you can offer cash dispensing today and migrate to cash recycling tomorrow with the industry's most flexible self-service terminal in the smallest footprint.
More secure: Layered security features protect against traditional and emerging physical, data and cyber threats.
Product show
Herong Intelligent Equipment Co., Ltd. is a professional manufacturer integrating R&D, production, assembly, sales and service. Herong was established in 2016 and is located in Dongguan City, Guangdong Province, China.
We are proficient in various types of plastic molds and CNC hardware processing. We also specialize in vending machines, ATM/VTM machines, self-service kiosks, all other functional kiosks and their parts. Our factory has advanced mold and injection molding equipment, and has set up its own CNC machining center, which can perfectly undertake ATM accessories, auto accessories, household appliances, daily necessities, electronic products, medical equipment and other projects. We have professional equipment such as CNC punching machine, bending machine, laser cutting machine, spraying line, dust free workshop and all other related equipment. We can provide ODM/OEM service for customers. All the products we offer are certified by ISO9001, SGS, RoHs, CE, FCC, etc. For logistics, we can choose DHL, UPS, FedEx, sea or air, etc., it is up to our customers.
By continuously improving product quality and providing excellent service, we have maintained a good cooperative relationship with customers in more than 130 countries around the world.

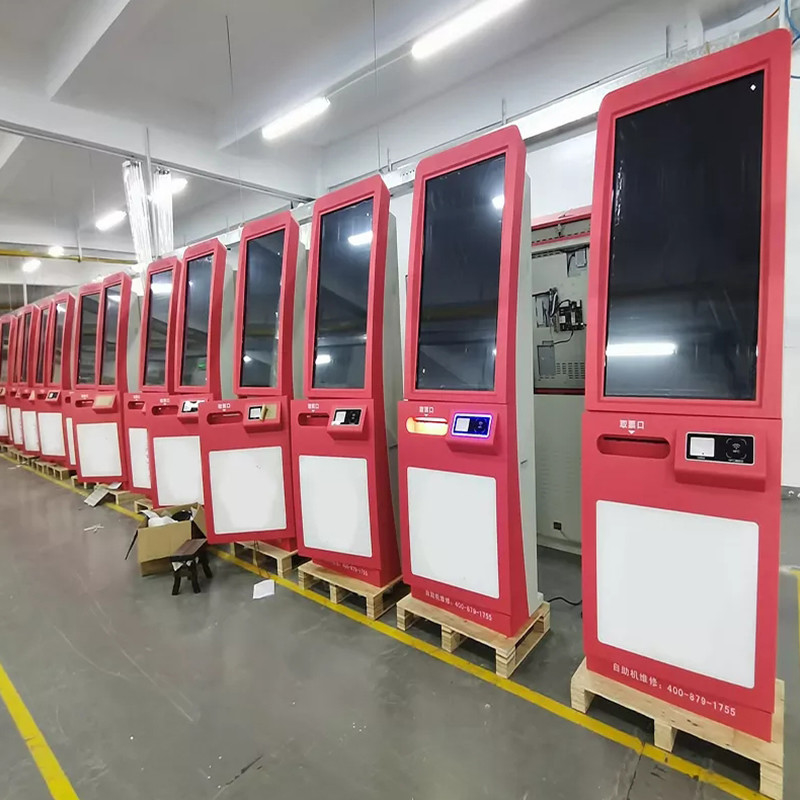

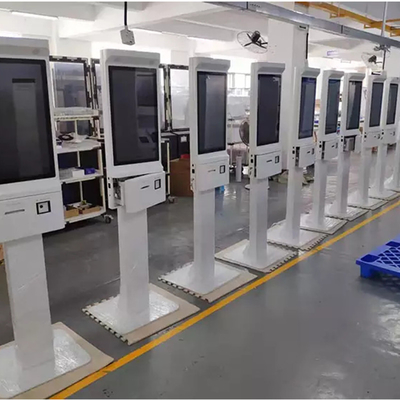

Factory
Warehouse
Package
Shipment
RFQ:
Q1:Are you a factory or simply a trading company?
A: We are a true OEM/ODM factory. Please read our company profile, for more information on this issue.
Q2: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also, please be aware, some factories may not advise you, but after the production delays, you might be facing a few more days delays before catching your sea or your on-board flight departures. ( might be anywhere from 3 to 7 working days). Again, depending in which season you are shipping.
Q3:Can we print our Logo on the products? What is MOQ?
A:We can print your own Logo on it as you like. There is no MOQ for stock models. For customized models will depending on your requests. Different methodes are used for logos, please ask your Key Account MGR for more information on this issue, we will surely find the right solution for you!
Q4:Do you give any discount ?
A: Prices are directly affected by the quantity. Simple ratio's, cost more to produce small qty and samples orders then larger ones. We have many ways to help our partners when starting the sample processes. Make sure to ask your Key Account MGR on how we can make you save some charges.
Q5:What payment methods your company accept?
A:We accept most oft the payment methods, but mainly accept T/T, L/C, Western Union etc.
