OEM/ODM Acceptable, Manufacturer of Kiosks.
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | HE |
| Certification: | CE/CCC/FCC/ROHS/ISO9001 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing (Foam and Wooden Crate) |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per month |
| Name: | Cash Recycling Machine | Packaging: | Customized |
|---|---|---|---|
| Graphic/ Photo: | Customized | Deviation Of Erro: | ±<1.0% |
| Ensurance: | 1 Year | Working Time: | The Whole Day |
| Key Board: | PCI EPP | Service Life: | Anti-fishing Design |
| Specification: | Customized | Function: | Standard |
| Dispenser: | Wincor | Nature: | Manufactured By Ourselves |
| Special: | Support For Intelligent Banks | ||
| Highlight: | Anti Fishing Cash Deposit Machine,Touch Screen Cash Deposit Machine |
||

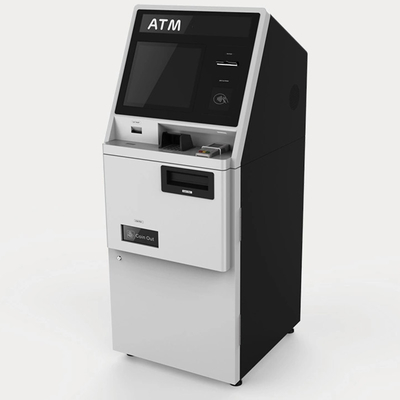

cash deposit machine 17 inch touch screen cash dispenser machine kiosk
Product Description
I. Brief Introduction:
It is specially designed for in-door or lobby scenarios where both banknote and metal coin withdrawals are necessary. The Standard model consists of a 5-compartment cash module and coin dispenser with 3 coin tubes. Thus, it supports maximum 5 denomination banknote withdrawals and 3 denomination coin out operations. It is also available for ATM cash point or semi-outdoor deployment.
II. Application Scenarios:
Bank offices, cash points, transportation hubs, supermarkets, gas stations, etc.
III. Technical Specifications:
| S/N | ITEM | SPECIFICATION |
| I. Mainframe | ||
| 1 | mainboard | Industrial control motherboard, H81 chip, LGA1150 CPU architecture; 2 DDRIII memory slots; 2 VGA interfaces; 10 USB, 12 RS232 interfaces, two 1000Mb adaptive dual NICs, support TCP/IP protocol, ATX300W power supply; power-on start, timer switch function; |
| 2 | CPU | 4th Generation Core I5 with clock frequency 3.6GHZ/LGA1150 |
| 3 | memory | DDR3 1600MHz, 8G |
| 4 | hard disk | 2.5 inch, 256G SSD |
| 5 | CPU fan | YES |
| 6 | Host power supply | 110-220V/300W |
| II. Multi-media | ||
| 7 | Speakers | 2*10W4Ω |
| 8 | Amplifier | SUNSON Audio V1.4 |
| III. ATM Power Supply | ||
| 9 | Power Distributor | Socket & plug type to be defined by BUYER. |
| 10 | 12V Power Supply Unit | Rated output power 150W, input voltage set through switch, 90~132V/180~264V, output voltage 12V, output rated current 8.8A. |
| 11 | 24V Power Supply Unit | Rated output power 200W, through the switch to select input voltage 90~132V/180~264V, output voltage 24V, output rated current 8.8A. |
| 12 | UPS | Backup UPS power supply, 1000VA, 700W, RS232 interface, software monitoring, input and output AC110V/220V, 50Hz/60Hz ±1Hz, power-on startup, timing switch function, standby time 10-30 minutes. |
| IV. Main Modules | ||

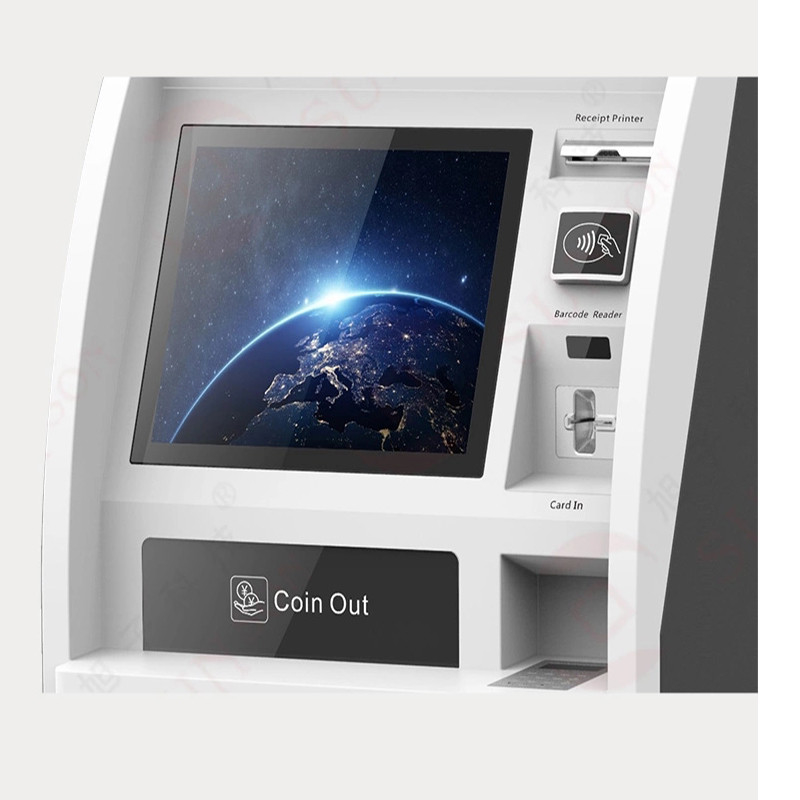

| 14 | Capacitive Touch Screen | 17 inch capacitive integrated screen, VGA interface, DC12V, display resolution 1024*768, capacitive touch integrated, USB interface, touch resolution 4096* 4096, passed CE certification. |
| 15 | Encrypt Pin pad | Standard RS232 interface, PCI V3.0 or above compliant, waterproof, dustproof, anti-vandal and anti-leakage, single DES, double DES and triple DES Algorithm, unpacking self-destruct program. |
| 16 | Coin Dispenser | DC24V, RS232 interface, capacity of 1100 coins. Please contact us to confirm your local coins compatibility. |
| 17 | NFC Card Reader | USB interface, DC5V (USB powered), operating frequency 13.56Mz, ISO-7816 compliant A, B and Class C (5V); ISO-14443 compliant A & B class with support for Mifxxe S50 /S70 cards; support non-contact IC card transaction function; RF read and write distance: up to 50mm; |
| 18 | DIP Card Reader | Standard RS232 interface, DC12V, two-in-one, support contact IC card, magnetic card reading and writing, magnetic card in line with ISO7810 ID-1, 7811 standard, IC card complies with ISO7816-2 standards, EMV and PCI certified. |
| 19 | Local Resident ID Card Reader | Optional, provided by the buyer. |

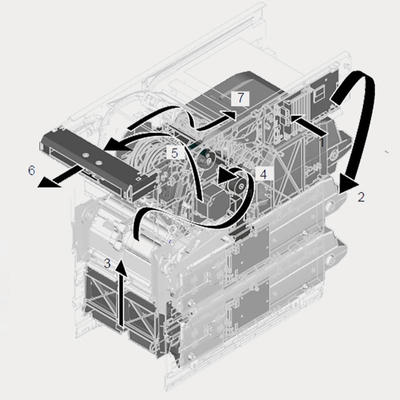

| 20 | Banknote Dispenser Module | RS232 interface, AC110V/220V, 3A, long side banknotes presenter, 5 withdrawal boxes with capacity of 3,000 bills and reject banknote box with capacity of 250. Please contact us to confirm your local coins compatibility. |
| 21 | Slip Printer | USB interface, DC24V2A, thermal printing, paper width 80MM, automatic paper cutting, paper diameter 80mm. |
| 22 | Alarm Unit | YES. |
| 23 | LED Indicators | YES. |
| 24 | SIU Interface Board | RS232 interface, DC12V. |
| 25 | Mechanical Combination Lock | YES. |
| 26 | Camera | Pinhole, 2 million pixels 480P, support WINDOWS, Android system, USB interface, COMS. |
| 27 | Presenter Shutter | YES, with preventive finger-clamping mechanism. |
| 28 | 2D Barcode Reader | RS232 communication, scanning mode: 2D image type (838 x 640 pixels), support for commonly used PDF417 2D barcode, Datamatrix 2D barcode , QR Code, GM Code, support to read the barcode information on various media such as paper, LCD, mobile phone screen, etc., with 1.6mm tempered glass protective cover. |
| 29 | Access Control Switch | YES. |
| 30 | WIFI Module | USB port. |
| 31 | Audio Switching Control | Switch between speakers and external headphones. |
| 32 | Cooling Fans | Dual 120*120*25mm |
| V. Accessories & Others | ||
| 37 | Metal Wares | YES |
| 38 | Plastic/Rubber wares | YES |
| 39 | Cables & Wires | YES |
| 40 | Cabinet | Safe made of 8mm steel plate |
| 41 | Package | YES, good for sea transportation. |
