OEM/ODM Acceptable, Manufacturer of Kiosks.
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | HE |
| Certification: | CE/CCC/FCC/ROHS/ISO9001 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing (Foam and Wooden Crate) |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per month |
| Logo: | Can Be Designed For You | Name: | Intelligent Cash Deposit Machine |
|---|---|---|---|
| Packaging: | Customized | Graphic/ Photo: | Customized |
| Deviation Of Erro: | ±<1.0% | Ensurance: | 3 Mouth |
| CPU: | 3.2GHz, Intel Core I3 | SAW Touch: | 15 17 19" |
| Highlight: | Intel Core i3 Intelligent Atm Machine,Intelligent Atm Machine Cash Deposit |
||

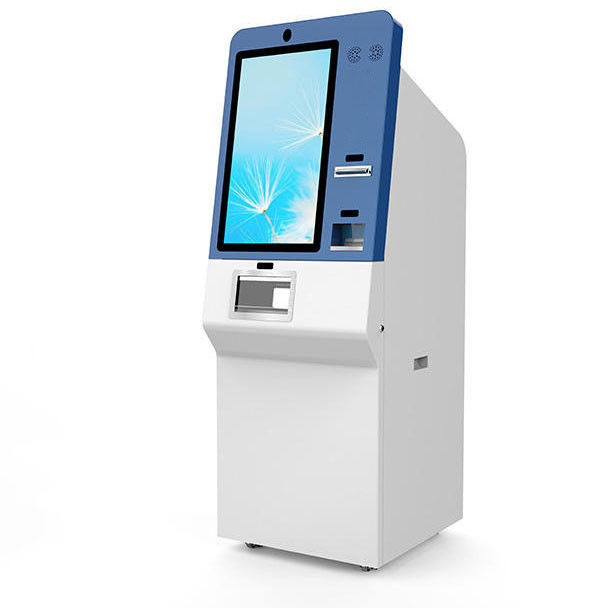

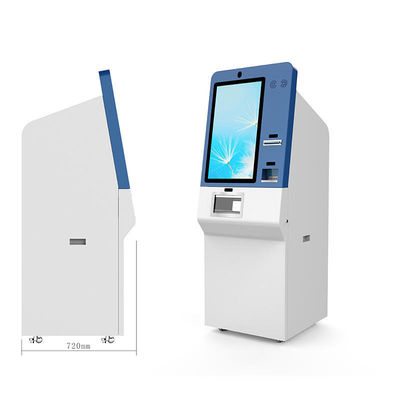

Atm Machine Cash Deposit And Dispensing Machine
Description Of Cash Deposit Machine
♦ New Modular Design Cash Deposit Machine
♦ All in one kiosk,Built in,Printer,NFC,Scanner,Speaker etc.
♦ Dual screen with touch
♦ Support Dual screen or Single screen
♦ Support Windows OS or Android OS
Product Description
Features
Intrinsic Performance
With high capacity and reliable performance, H22N series supports two options of cash processing modules according to user actual requirements. It supports maximum 14,000 notes dispensing capacity.
Flexible Scalability
With the unrivalled level of scalability, contactless card reading, bill payment and other biometric solution features can be flexibly applied on H22N series. They deliver value-added services in many scenarios for banking channel expansion.
Premier Security
Built-in anti skimming and anti-cash-trapping solutions, wide-range customer awareness mirror, biometric authentication, high resolution security cameras and DVR guarantee a more secure transaction environment for customers.
Optimized Design
Ergonomic fascia and compact structure, intuitive dispensing features combined with scalable functionalities.
Specifications
Controlling Unit
Intel® Core™ i3/i5/i7 3.3Ghz CPU, 4G RAM (up to 16GB)
500G HDD (Dual HDD support), DVD-RW
Windows® XP / 7 /10
Banknote Processing Unit
High-speed bulk dispenser:
-Dispensing speed: 7 notes per second
-Max. 100 notes per transaction
-Up to 4 cassettes
-Cassette capacity: max. 3,500 notes*
Reject capacity: max. 300 notes
Retract capacity: max. 300 notes
OCR for note serial number recognition (opt.)
Customer Interfaces Display
-15’ TFT color LCD with optional touch screen & 2*4 function keys
-Privacy filter (opt.)
-Optional brightness of screen
-Advertisement display light panel (opt.)
Keypad
-Tactile 4*4 alphanumeric keypad
-PCI compliant EPP
Card reader
-Motorized card reader
-DIP card reader (opt.)
-Contactless smart card reader/writer (opt.)
-EMV Level 1 and Level 2 compliant
-Anti-skimming design
-Card return on power failure (opt.)
-Retract card capacity: max 30 cards (opt.)
Receipt printer
-80mm 203DPI graphical thermal printer
-Capture and retract capability
Journal printer (opt.):
-High speed dot matrix journal printer
-Thermal printer
1D & 2D barcode scanner (opt.)
High quality public audio and / or headset jack
Maintenance
10.4” LCD service panel with touch screen (available on rear access model)
Front, rear and side access
Security Physical
-Electronic lock (opt.)
-Mechanical combination lock
PCI compliant EPP
EMV Level 1 and Level 2 certified
-Electro magnetic interference device
PIN Pad shield
EMV certified
-Electro magnetic interference device
Biometric Authentication
-Finger vein reader (opt.)
-Finger print scanner (opt.)
-Facial recognition (opt.)
Customer awareness mirror
DVR surveillance system (opt.)
Transaction image capture for surveillance (opt.)
UPS (opt.)
SecOne for software and network security (opt.)
Sonic alarm modules (opt.)
UL/CEN Safe
Communication
Standard TCP-IP connection
Dial-up, wireless connection, SNA/SDLC and X.25 (opt.)
Working Environment
Temperature: Indoor: 32°F (0 °C) to 104°F (40°C)
Outdoor: 14°F (-10°C) to 122°F (50°C)
(with optional heating unit)
Relative humidity: 20% to 95% non-condensing
* The actual capacity is subject to the thickness and fitness of local currency
