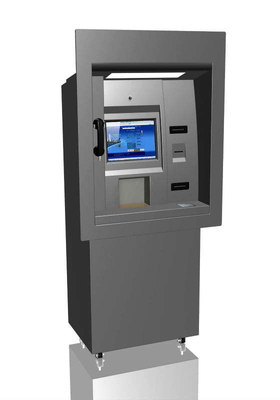

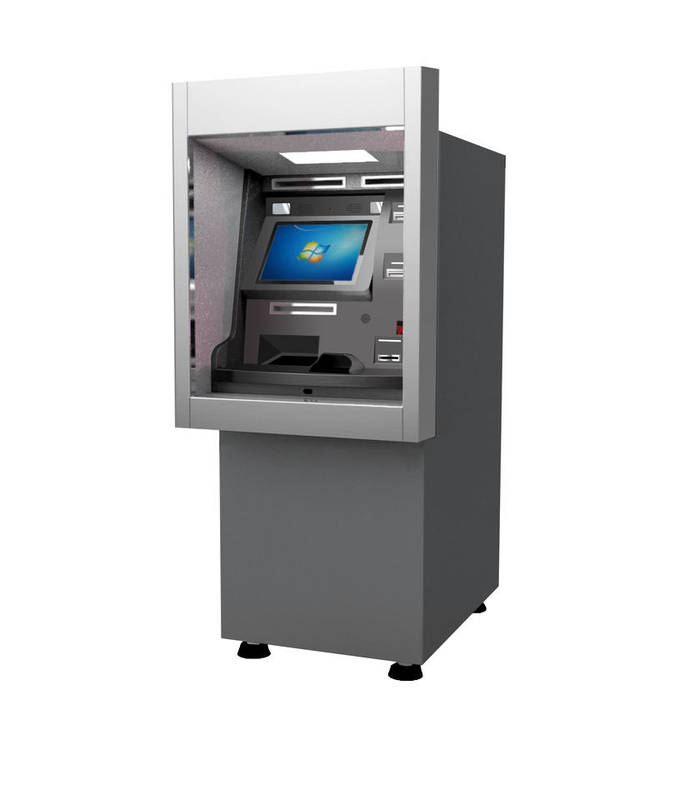

Outdoor ATM Cash Deposit Machine 24 Hour Automatic Transfer cash deposit machine

Outdoor cash 24 hour automatic transfer ATM Cash Deposit Machine

Product Description

Features

Intrinsic Performance

With high capacity and reliable performance, H22N series supports two options of cash processing modules according to user actual requirements. It supports maximum 14,000 notes dispensing capacity.

Flexible Scalability

With the unrivalled level of scalability, contactless card reading, bill payment and other biometric solution features can be flexibly applied on H22N series. They deliver value-added services in many scenarios for banking channel expansion.

Premier Security

Built-in anti skimming and anti-cash-trapping solutions, wide-range customer awareness mirror, biometric authentication, high resolution security cameras and DVR guarantee a more secure transaction environment for customers.

Optimized Design

Ergonomic fascia and compact structure, intuitive dispensing features combined with scalable functionalities.

Specifications

Controlling Unit
Intel® Core™ i3/i5/i7 3.3Ghz CPU, 4G RAM (up to 16GB)
500G HDD (Dual HDD support), DVD-RW
Windows® XP / 7 /10
Banknote Processing Unit
High-speed bulk dispenser:
-Dispensing speed: 7 notes per second
-Max. 100 notes per transaction
-Up to 4 cassettes
-Cassette capacity: max. 3,500 notes*
Reject capacity: max. 300 notes
Retract capacity: max. 300 notes
OCR for note serial number recognition (opt.)


Customer Interfaces Display
-15’ TFT color LCD with optional touch screen & 2*4 function keys
-Privacy filter (opt.)
-Optional brightness of screen
-Advertisement display light panel (opt.)
Keypad
-Tactile 4*4 alphanumeric keypad
-PCI compliant EPP
Card reader
-Motorized card reader
-DIP card reader (opt.)
-Contactless smart card reader/writer (opt.)
-EMV Level 1 and Level 2 compliant
-Anti-skimming design
-Card return on power failure (opt.)
-Retract card capacity: max 30 cards (opt.)
Receipt printer
-80mm 203DPI graphical thermal printer
-Capture and retract capability
Journal printer (opt.):
-High speed dot matrix journal printer
-Thermal printer
1D & 2D barcode scanner (opt.)
High quality public audio and / or headset jack


Maintenance
10.4” LCD service panel with touch screen (available on rear access model)
Front, rear and side access
Security Physical
-Electronic lock (opt.)
-Mechanical combination lock
PCI compliant EPP
EMV Level 1 and Level 2 certified
-Electro magnetic interference device
PIN Pad shield
EMV certified
-Electro magnetic interference device
Biometric Authentication
-Finger vein reader (opt.)
-Finger print scanner (opt.)
-Facial recognition (opt.)
Customer awareness mirror
DVR surveillance system (opt.)
Transaction image capture for surveillance (opt.)
UPS (opt.)
SecOne for software and network security (opt.)
Sonic alarm modules (opt.)
UL/CEN Safe


Communication
Standard TCP-IP connection
Dial-up, wireless connection, SNA/SDLC and X.25 (opt.)


Working Environment
Temperature: Indoor: 32°F (0 °C) to 104°F (40°C)
Outdoor: 14°F (-10°C) to 122°F (50°C)
(with optional heating unit)
Relative humidity: 20% to 95% non-condensing
* The actual capacity is subject to the thickness and fitness of local currency

FAQ
1. Are you a manufacturer?
Yes, we are a professional ATM and ATM hardware manufacturer, headquartered in Dongguan, China.
2. Can I get some samples? Are they free?
Of course, you can get sample for testing before bulk order, but samples are not free.
3. What are your payment terms?
We accept T/T,Trade Assurance Order or Paypal payment terms.You can choose the payment terms which convenient to you.
4. What about the warranty time?
We provide 1 year warranty for all our product .
5. Can I have my own logo on the products, do you offer product OEM?
Yes! We can put your logo on the product and we do OEM for customers. But it requires a certain quantity and the cost need to be
added separately.
6. What kind of certificate you have?
CE, FCC and RoHS as standard.Some products approved EMv&PCI,CB,CCC certificates.
7. What about the after-sale service?
We provide full technical support on our products, if there is a machine doesn’t work,a free parts will be sent to you by free to replace,if it still not working, we will send you a new one.
