OEM/ODM Acceptable, Manufacturer of Kiosks.
 |
| Place of Origin: | China |
| Brand Name: | HE |
| Certification: | CE/CCC/FCC/ROHS/ISO9001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing (Foam and Wooden Crate) |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pieces per month |

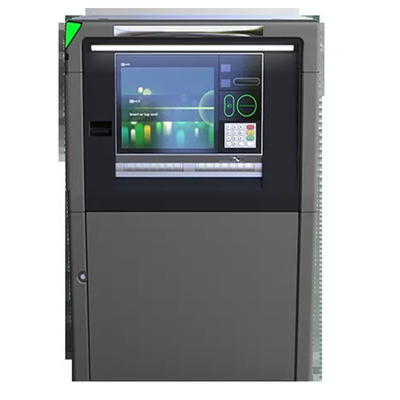

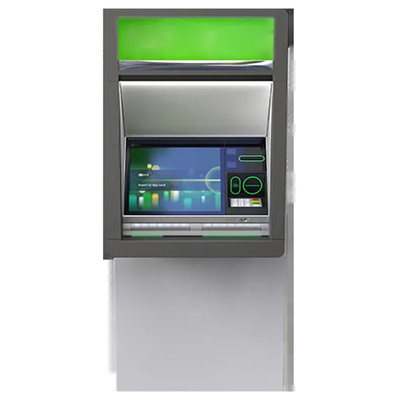

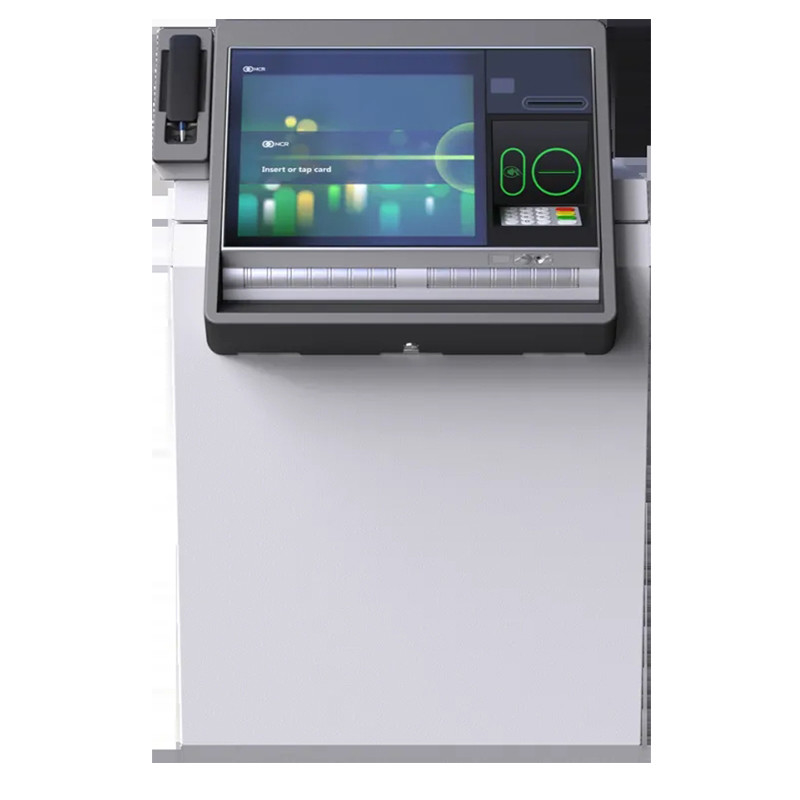

| Product Name: | Cash Dispenser Machine | Screen Size: | 17/19/22 /32 Inch |
|---|---|---|---|
| OS: | Window 10 | Contrast: | 1000:1 |
| RAM: | 4G/8G | Application: | Indoor |
| Brightness: | 300cd/m2 | Warranty: | One Year |
| Highlight: | 300cd/m2 Atm Cash Dispenser,Bank Automatic Teller Atm Cash Dispenser |
||
Product Parameters:
System Software:
NCR Software Suite
Operating System:
Windows® 10
Windows® 7
|
Dimensions: Height: 50.63" (1,286mm) Width: 30.31" (770mm) Depth: 30.47" (774mm) Audio: Public & Private Barcode Reader: 2D Barcode Reader |
Bunch Capacity: Dispense – S2 Media Dispense Module: up to 60 note bunch, Deposit – SDM2: up to 100 mixed media bunch cash + check in a single transaction Recycle/Deposit – GBxx2: up to 200 notes per transaction Check – SCPM2: Up to 30 checks |
|
Cassette Configuration: Dispense - 4 or 5, Recycle/Deposit - 3R + 1D or 2R +2D, Mixed Media Deposit - 1 Cash + 1 Check. Dual Module/Tower capability. |
Contactless: integrated Reader (via card, smartphone or smartwatch)
|
|
Display: 15" or 19" LCD Multitouch Display
|
Environmental: Severe Environment, Biometrics, UPS, Standard: 50°F to 104°F (10°C to 40°C) With Severe environment: 32°F to 104°F (0°C to 40°C) Humidity (interior): 20% to 80% |
|
Keyboard: Pinpad - Recessed Encrypted Pinpad - Encrypted Polycarbonate Stainless Steel
|
Media Handling Technology: S2 Dispenser, GBXX2, SDM2, Bulk Coin Deposit, Coin Dispense, SCPM, Optional modular sidecars: card issuance, A4 document scanning, statement printer and ID scanner |
|
MEEI: Dynamic MEEIs Green MEEI |
Module: Dual, Optional sidecars
|
|
Note Capacity: Cassette Capacity - Dispense: 2,500 notes per cassette. Deposit: Up to 2,300 notes per cassette Recycle: Up to 2,000 notes Mixed Media Deposit - Store up to 4,000 notes + 400 checks. Check – Up to 1,000 checks |
Power Management: Uninterrupted Power Supply (UPS)
Printer: 2ST, Dual Roll Processor: Intel Core i3/i5
|
|
RAM: 16 GB 8 GB
|
Security: Supports “Picture in Picture” security, Privacy filter enabled display, Cameras – 3rd party consumer camera and optional cash slot camera enabled, SolidCore Software Suite, Strengthened Shutter, Integrated Skimming Protection Solution, UL437 Topbox lock, Ballistic Protection Certified, Safes - CEN I. Safe heater with S2. |
|
Servicing: Front Access Rear Access LCD Operator Panel (GOP) LCD Operator Panel (COP) |
Storage Options: 240GB Solid State Drive (SSD) 480GB Solid State Drive (SSD) |
|
Tamper Resistant Card Reader: Other: Card Reader – EMV Ready (Dip, Motorized IMCRW) Video Teller Capable: Yes XFS: NCR XFS
|
Options: A range of modular sidecars for greater SmartBranch functionality, Lighting – Task lighting. Ambient light sensing, e-Receipts to a mobile device, NCR Interactive Banker and Teller Enterprise SW compatible, page turning passbook,
Note: Weight varies by safe and can be supplied on request. Capacities vary dependent on check or note quality, thickness and deposit module used.
|
* The specific configuration is subject to the actual product
Reimagine the banking experience with a new user-centered ATM design that enables your financial institution to better connect with consumers in the branch. It is a premium interior ATM featuring modular SmartBranch options, including Interactive Teller for remote assisted service integration, as well as Interactive Banker for in-person assistance compatibility.
