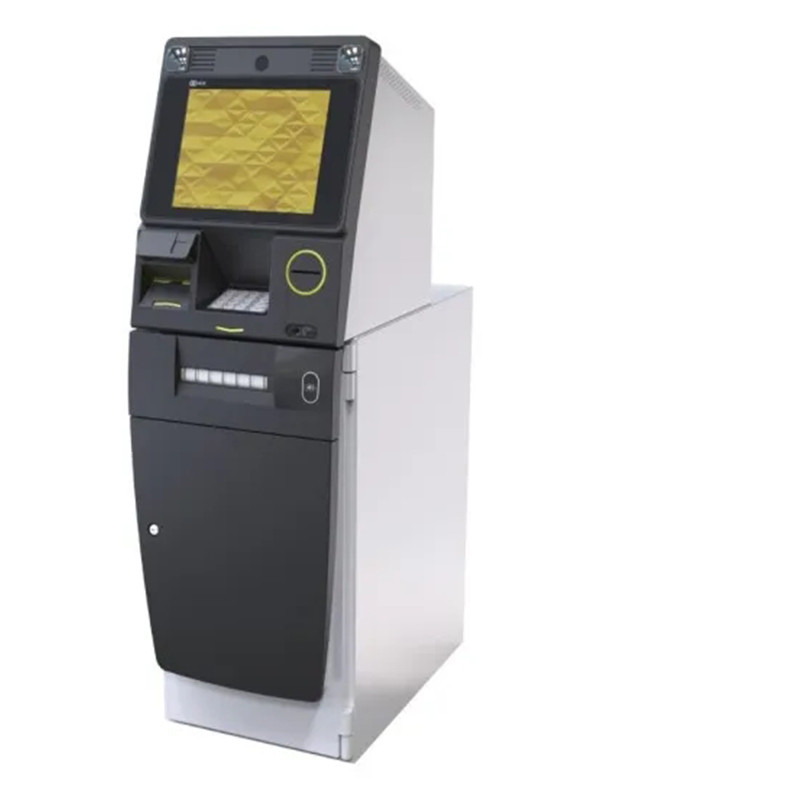

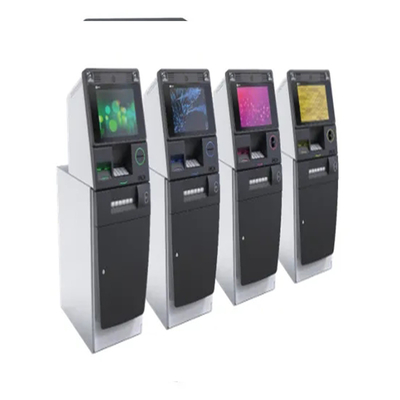

Window 10 32 Inch Screen ATM Cash Machine For Indoor

Window 10 32 Inch Screen ATM Cash Machine For Indoor

  • Window 10 32 Inch Screen ATM Cash Machine For Indoor
  • Window 10 32 Inch Screen ATM Cash Machine For Indoor
Window 10 32 Inch Screen ATM Cash Machine For Indoor
Product Details:
Place of Origin: China
Brand Name: HE
Certification: CE/CCC/FCC/ROHS/ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Packing (Foam and Wooden Crate)
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 pieces per month
Contact Now
All Products
Vending Machine Kiosk (83)
Self Service Kiosk (55)
ATM Cash Machine (143)
Cash Deposit Machine (65)
Self Service POS Kiosk (23)
Self Payment Kiosk (27)
Self Ordering Kiosk (52)
Ticket Kiosk Machine (22)
Currency Exchange Kiosk (10)
Government Kiosk (17)
Video Teller Machine (15)
Bitcoin Kiosk (9)
ATM Spare Parts (167)
Kiosk Parts (17)
Banking Machine Module (116)
Detailed Product Description
Product Name: Cash Dispenser Machine Screen Size: 17/19/22 /32 Inch
OS: Window 10 Contrast: 1000:1
RAM: 4G/8G Application: Indoor
Brightness: 300cd/m2 Warranty: One Year
Highlight:

32 Inch Screen ATM Cash Machine

,

Window 10 ATM Cash Machine

Cash Dispenser Kiosk ATM Machine For Bank Automatic Teller Machine Inch Touch Screen
Product information:



Main Features:



Supports NDC+, DDC and ISO 8583 protocols Computer i3, i5 & i7, according client specification
One or two HD of 1TB LCD monitor sizes: 15″ or 19″
Encrypted Dip Card Reader, EMV L1 & L2 certified Dispenser with 4 cassettes (3000 notes capacity each)
FHDE, TLS, WLA Software solutions Voice guidance (Text to Speech)
Side function keys or touchscreen or both PCI approved Encrypted Pin Pad (EPP)
Anti-skimming protection 80mm wide thermal printer, 4”, 7”, or 9” paper roll, presenter
UIDAI complaint fingerprint reader Compact 500mm wide
Security rear view mirrors UL 291 24h Level 1 on CEN1 Safes



Optional Features:



  1. IRIS reader
  2. NFC reader
  3. Barcode reader
  4. Journal printer
  5. Ink staining technology for bank note neutralization
  6. Other features also available upon request



Product Parameters:


Standard
  • Compliant with most banking standard specifications, including
  • CEN/XFS, NDC, DDC, ISO8583, etc.
printer:
  • Graphic thermal receipt printer, E-journal printer, Journal printer (opt.)
  • 58 /80millimeter
Screen 10.1/15/17/19 inch touch screen
Multi- currencies Multi- currencies: Coin/ cheque
Communication Standard TCP- IP/ RJ45/WIFI/X.25/USB/GPRS
size Customized
dimension Customized
security Compliant with most banking standard specification
UL 291 level 1 compliant
Mechanical combination lock
CEN/XFS, NDC, DDC
  • Safe: UL 291 Level 1 Compliant
  • Lock: Mechanical combination lock
  • Cameras: Binocular recognition camera(opt.), Ordinary
  • facial camera(opt.), Ordinary exit slot camera(opt.),
  • Ordinary room camera(opt.), Ordinary extra camera(opt.)
  • Sensors: Shock sensor(opt.), Infrared sensor(opt.),
  • Smoke sensor(opt.), Light sensor(opt.)
  • Others: Explosion-proof glass, PIN Pad shield, DVR(opt.)





processing module
  • Cassette: 4 cash out units, 1 reject/retract unit
  • Capacity: The cash out unit supports up to 310 mm thick
  • banknotes, the reject unit supports Max. 400 banknotes, and the
  • retract unit supports Max. 100 banknotes. Up to 60 banknotes
  • per transaction, 6-8 banknotes/second, single reject switch
  • OCR: Support banknote serial number recognition (opt.)





working time 24 hours and 7 days

processing module
  • Hopper:500 notes
  • Stacker:200 notes
  • Reject stacker:100 notes
  • Processing speed:1000 notes/ mins
  • cash bag capacity:20,000 notes
  • Cassette: 4 recyclable units, 1 reject/retract unit
  • Capacity: 4 recyclable units support to extend to Max. 8 recyclable sub units, the recyclable unit supports Max. 3400 banknotes,
  • the reject unit and the retract unit support Max. 2250 banknotes.
  • Up to 300 banknotes per transaction, 12 banknotes/second,
  • OCR: Support banknote serial number recognition (opt.)
identification facial recognition
finterprint scanner
card reader
  • contactless smart card reader
  • motorized card reader
  • DIP card reader/ writer
others

Bar code reader, Finger print reader, Customer awareness mirror, Speaker,

Audio jack
light

Top light, Device guide light, Status indicator light, LED electronic screen

light(opt.), Logo light(opt.)





* The specific configuration is subject to the actual product





Window 10 32 Inch Screen ATM Cash Machine For Indoor 0

Window 10 32 Inch Screen ATM Cash Machine For Indoor 1

It helps enable financial institutions to better meet corporate environmental sustainability goals, reduce total cost of ownership and manage risk through enhanced security innovations. This, combined with human-centric design, will empower you to deliver a self-directed banking experience for the digital consumers of today and tomorrow.

With end-to-end service excellence, HE Enterprise Software and digital-first hardware, it connects the world with cash.

Running the ATM channel has never been more simple.



Window 10 32 Inch Screen ATM Cash Machine For Indoor 2Window 10 32 Inch Screen ATM Cash Machine For Indoor 3

Window 10 32 Inch Screen ATM Cash Machine For Indoor 4
