OEM/ODM Acceptable, Manufacturer of Kiosks.
 |
| Place of Origin: | China |
| Brand Name: | HE |
| Certification: | CE/CCC/FCC/ROHS/ISO9001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing (Foam and Wooden Crate) |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pieces per month |
| Product Name: | Cash Dispenser Machine ATM | Screen Size: | 15/17/19/22 Inch |
|---|---|---|---|
| OS: | Window 10/Android | Display Ratio: | 4:3 |
| RAM: | 16G | Application: | Indoor |
| Rear Service Screen: | 10.4 Inch | Warranty: | One Year |
| Highlight: | Wall Mounted Coin Dispenser Machine,Supermarket Coin Dispenser Machine |
||

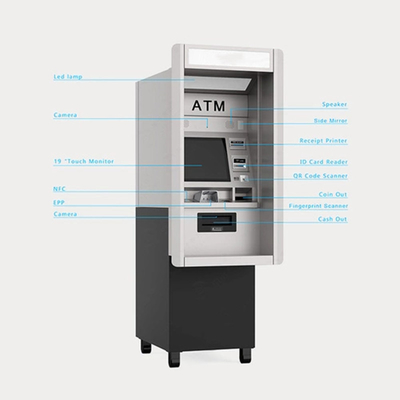

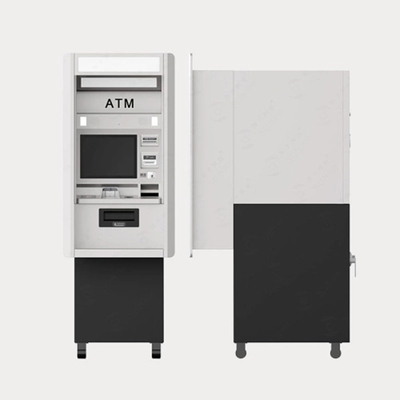

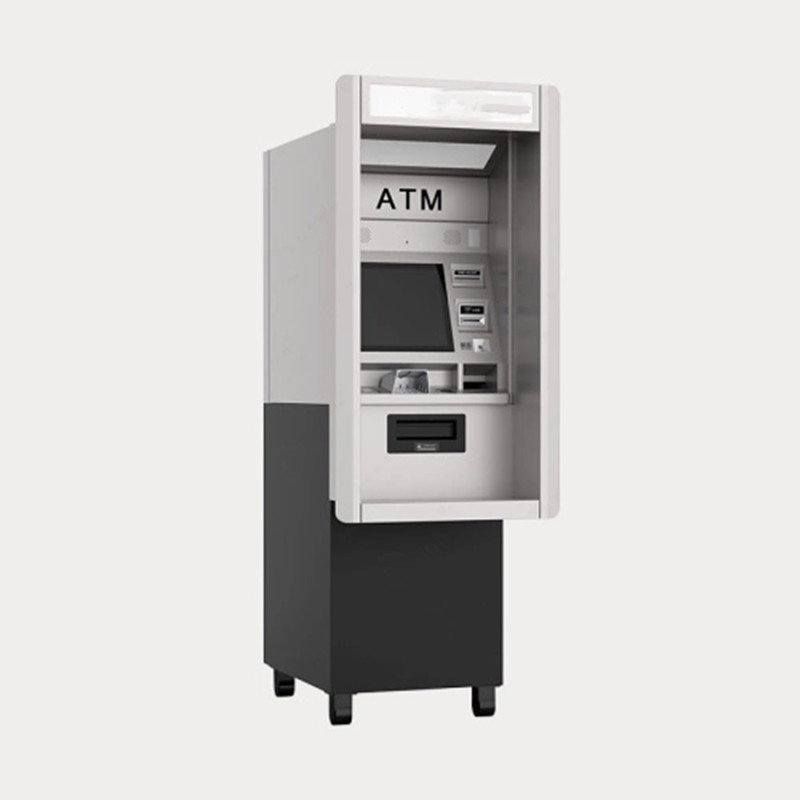

Wall Mounted Cash and Coin Dispenser Machine ATM Machine for Banks
Features:
Product Parameters:
| Mainboard | Industrial control motherboard, H81 chip, LGA1150 CPU architecture; 2 DDRIII memory slots; 2 VGA interfaces; 10 USB, 12 RS232 interfaces, two 1000Mb adaptive dual NICs, support TCP/IP protocol, ATX300W power supply; power-on start, timer switch function; |
| CPU | 4th Generation Core I5 with clock frequency 3.6GHZ/LGA1150 |
| RAM | DDR3 1600MHz 16G |
| Hard Disk | 2.5-inch 500G SSD |
| CPU Fan | YES |
| Power Supply | 110V-220V/300W |
| DVD Drive | 24x speed, SATA interface |
| Speakers | 2*5W8Ω |
| Amplifier | CCC certified |
| Power Distributor | Socket & plug type to be defined by BUYER. |
| 12V Power Supply Unit | Rated output power 150W, input voltage 90~132V/180~264V, output voltage 12V, output rated current 8.8A. |
| 24V Power Supply Unit | Rated output power 200W, through the switch to select input voltage 90~132V/180~264V, output voltage 24V, output rated current 8.8A. |
| UPS | Backup UPS power supply, 1200VA, 700W, RS232 interface, software monitoring, input and output AC110V/50Hz±1Hz, power-on start, timing switch function, standby time 10-30 minutes |
| Main Screen | 19-inch capacitive integrated screen, support multi-touch, display ratio 4:3, VGA, USB interface, the best display resolution 800 * 600, touch screen resolution 4096 * 4096, DC12V |
| Rear Service Screen | 10.4 inch capacitive integrated screen, support multi-touch, display ratio 4:3, VGA, USB interface, the best display resolution 800 * 600, touch screen resolution 4096 * 4096, DC12V |
| Front HD Camera | Pinhole, 500W pixels, support WINDOWS, USB interface, COMS |
| Cash Presenter Camera | Pinhole, 200W pixels, support WINDOWS, USB interface, COMS |
| Receipt Printer | DC24V, USB interface, thermal printing, paper width 80mm, CAP-347 movement, full cut, round hole power interface, also with anti-jamming nozzle, paper will run out, black mark detection function |
| Electric DIP Card Reader | Standard RS232 interface, DC12V, two-in-one, support contact IC card, magnetic card reading and writing, magnetic card in line with ISO7810 ID-1, 7811 standard, IC card in line with ISO7816-2 standard, through EMV, PCI certification |
| Encrypted Pin Pad (EPP)with Shield | Standard RS232 interface, through PCI V6.0 international certification, with waterproof, dustproof, vandal and leak-proof, single DES, double DES, 3x DES algorithm, unsealing self-destruct program, with a peek-proof cover |
| 2 in 1 Optical Code Reader | USB interface, scanning mode: two-dimensional image type (838 x 640 pixels), support commonly used PDF417 two-dimensional barcode, Datamatrix two-dimensional barcode, QR code, GM code, support to read paper, LCD, mobile phone screen and other media on the bar code information; |
| Fingerprint Reader | USB interface, semiconductor working mode, pixel definition: 700 (DPI), supply voltage: 5.0V +/-.25V, fingerprint ingestion: <1000mA, image acquisition time 0.01s, fingerprint processing time 0.01s, |
| NFC Card Reader | USB interface, DC5V (USB powered), operating frequency 13.56Mz, ISO-7816 compliant A, B and C classes (5V); ISO-14443 compliant A & B class, support Mifxxe S50 S70 card support NFC function, support non-connect IC card transaction function; RF read and write distance: up to 50mm or more; |
| Anti-skimmer Controller | RS232 interface, DC12V, probe reader nozzle |
| Bulk Banknote Dispenser | RS232 interface, AC220V/3A, stack of horizontal banknotes, 4 withdrawal banknote boxes + 1 scrap box, banknote box capacity of 3000 pieces, recycled banknote boxes 250 pieces, support 5, 10, 20, 50 US dollars. Please contact us to confirm support of other currencies. |
| Coin Dispenser | DC24V, RS232 interface, capacity of 1100 coins. |
| Presenter Shutter | YES. |
| SIU Board | RS232, DC12V, control multi-channel access control switch, support vibration alarm, thermal induction alarm |
| Door Access Control Switch | YES |
| Body Sensor for Screen Saver | RS232 interface, DC12V, infrared sensing, distance 1 meter, when the human body is close to the ATM Machine, the machine is in a working state, and transmitted to the background through the software, when the human body leaves the Atm Machine, the machine is in advertising mode. |
| Awareness Mirrors | YES |
| Alarm Unit | YES |
| Digital Combination Lock | YES |
| LED Indicators | YES |
| Genuine Operating System | Official Windows 10, 64-bit |
| Cooler Fan | 120*120*20mm |
| Metal Wares | YES |
| Plastic/Rubber Wares | YES |
| Cables & Wires | YES |
| Cabinet | Safe made of 8mm steel plate |
| Package | YES, good for sea transportation. |
If you are interested in our kiosks, please inform us your detail requirements as below or any other related, so we can quote accurately.
If you order from us, you will get these advantages:
