OEM/ODM Acceptable, Manufacturer of Kiosks.
 |
| Place of Origin: | China |
| Brand Name: | HE |
| Certification: | CE/CCC/FCC/ROHS/ISO9001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing (Foam and Wooden Crate) |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pieces per month |

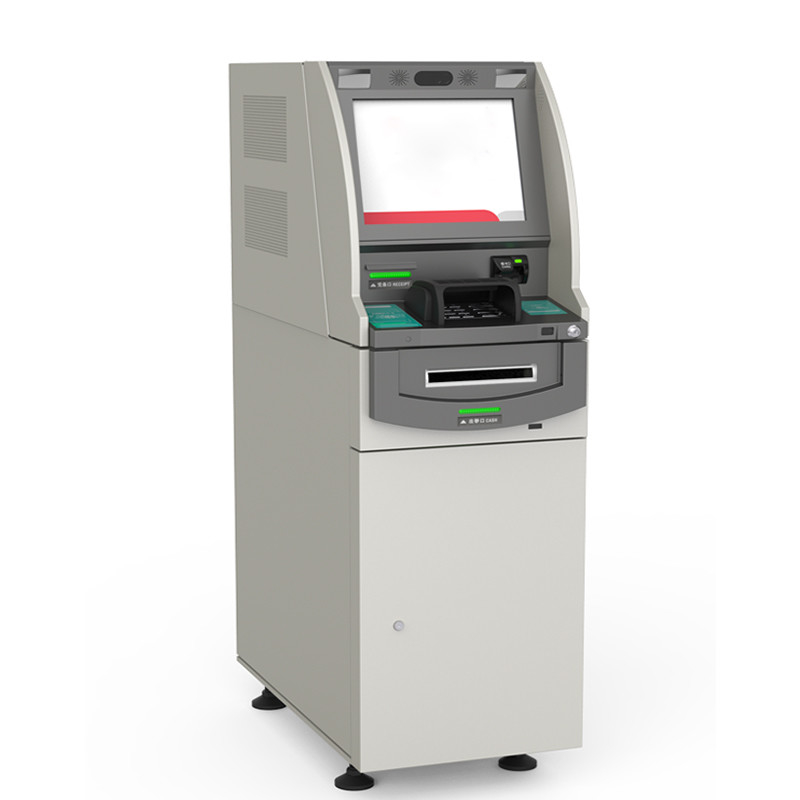

| Product Name: | Cash Dispenser Machine | Screen Size: | 17/19/22 /32 Inch |
|---|---|---|---|
| OS: | Window 10 | Contrast: | 1000:1 |
| RAM: | 4G/8G | Application: | Indoor |
| Brightness: | 300cd/m2 | Warranty: | One Year |
| Highlight: | 17 Inch Screen Cash Dispenser Kiosk,Window 10 Bank ATM Machine,UL291 L1 Self Cash Dispenser |
||
Product information:
Features:
Product Parameters:
| Monitor Size | 19" or 15" 17" 21.5" 24" Can Choose |
| Resolution | 1920*1080 |
| Ratio | 16:9 |
| Brightness | 300cd/m2 |
| Contrast | 1200:1 |
| Host Brand | Gigabyte ,Asus,Industrial PC |
| CPU | 1000M i3 i5 i7 |
| RAM | 2G 4G 8G Optional |
| ROM | 64G 120G 256G SSD |
| OS& Drivers | Windows 7/Windows 10 /Unix/Linux OS Available; All Related Hardware Drivers/SDK Available For The Software Development/Integration |
| Enclosure | Spraying Plastic Powder；Moistureproof, Antirust, Anti-acid, Anti-dust, Static Free |
| Touch Screen | Capacitive Or Infrared |
| Touch Point | Multi Points |
| Pure Tempered Glass;Single-point Touch Life Expectancy More 50,000,000 Times | |
| Thermal Printer | 80mm Wide,Automatic Cut |
| Card Reader | Working Frequency:13.6MHZ, |
| Accessories (Optional) |
A4 Printer; Fingerprint Scanner; Cash Acceptor; Cash Dispenser; Metal Encryption Keyboard; etc |
Specification:
Controlling Unit
CPU:Intel, 3.4GHz; RAM:8GB, HDD:1TB (WD WD10EZEX); PORTS:COM*10/USB*14/VGA*2/RJ45*2
OS
Windows 10 Operating System (English)
Customer Display
17“ High-Light TFT color&touchable LED with vandal glass,Touch screen,Waterproof, Dust-proof, Resolution 1024x768,
Privacy display filter
EPP
4 X 4 numeric metal keypad, waterproof, dust-proof, PCI4.0 certified EPP
Card Reader
Motorized card reader (magnetic/IC card supported,EMV certified) ,ISO 7810 , 7811 , Magnetic card R/W track 1/2/3, ISO /IEC 7816,
IC card R/W; Anti-Fishing/Anti-skimming, Return card on Power failure, Card capture Bin
RFID Card Reader(Opt)
support ISO 14443 A/B card;support NFC
Receipt Printer
High-speed 40 column graphic thermal printer; Paper width: 80 mm; Paper roll diameter: 150 mm max.
Journal Printer (Opt)
Dot Matrix 40 Columns graphic thermal printer; Paper roll: 76mm; Paper roll diameter: 120mm max.
Cash dispenser
Frictional bundle cash dispensing; Dispensing speed: 8 notes/S; Maximum 72 notes;Note cassette: 4 cassettes+ 1 reject vault (separate retract from reject compartment)
Cassette capacity: 3000 new notes
Finger Printer(Opt)
Sensor type: CMOS; Matching Method: 1:1 or 1:N; Interface: USB2.0
Barcode Reader
1D: UPC,EAN,Code128,Code39,Code93,Code11,Matrix 2 of 5,Interleaved 2 of 5,Codedabar,MSI Plessey,etc.
2D:PDF417,MicroPDF417,Data Matrix, Maxicode, QR Code,Micro QR,Aztec,Hanxin,etc.
Pinpad Shield
Fireproof plastic pinpad shield cover EPP to protect PIN
Safe
UL291 L1 or CEN L
Lock
Combination mechanical lock and key lock
Camera
2 * Camera(Portrait+Shutter)
Power Supply
AC220±15% V/ 50±Hz
Awareness Mirror
2*1 Awareness Mirror
* The specific configuration is subject to the actual product
