OEM/ODM Acceptable, Manufacturer of Kiosks.
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | HE |
| Certification: | CE/CCC/FCC/ROHS/ISO9001 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing (Foam and Wooden Crate) |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per month |
| Name: | Cash Deposite Machine | Packaging: | Customized |
|---|---|---|---|
| Graphic/ Photo: | Customized | Deviation Of Erro: | ±<1.0% |
| Ensurance: | 3 Mouth | Working Time: | A Whole Day |
| Key Board: | PCI EPP | Service Life: | Anti-fishing Design |
| Specification: | Customized | Function: | As What You Need |
| Dispenser: | Wincor | Nature: | Manufactured By Ourselves |
| Special: | Support For Intelligent Banks | ||
| Highlight: | Cash Deposit Machine recycling technology,Cash Deposit Machine pci epp,Cash Deposit Machine alphanumeric keypad |
||

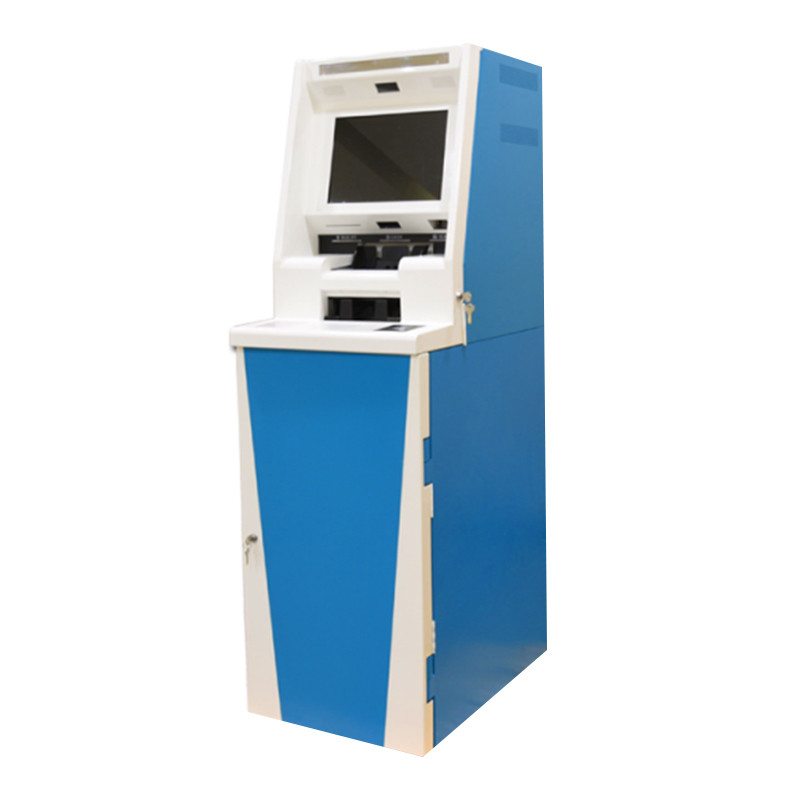

Product Description
High-speed cash deposit equipment. It is a non-stop, automatically accepting banknote deposit machine with functions such as currency recognition, denomination sorting, banknote serial number tracking, etc., suitable for application scenarios where a large quantity of notes acceptance; the flexible/friendly software solution makes it easily connect to bank the host system, or Merchant ERP system, etc. to achieve real-time account credit.
The product can be widely used in places that need to store a large amount of cash, such as banks, malls, supermarkets, stores, hospitals, gas stations, large enterprises, communities, etc.
Multiply Currency Identification. Compatible with cash processing self-service equipment that integrates banknote counting, counterfeiting, sorting, and storage reduces the probability of banknote counting errors speeds up cash processing, and improves work efficiency.
Non-stop deposits: The movement can uninterruptedly place banknotes, fast, and meet the needs of large cash deposits. With a short transit path, it reaches a very low jam rate.
Humanized design: compact body, ergonomic operation It has optional modules according to user needs, such as EPP, card reader, keyboard, barcode reader, and so on.
Overall solution: Provide standardized deposit software and monitoring system, which can be flexibly connected with the bank or merchant ERP system to adapt to various business system architecture scenarios.
Banknotes Processing Unit:
| Counting Speed: 800 notes per minute | Counterfeit Detection: IR, UV, CIS IMAGE, MT, MG |
| Reject Pocket Capacity: 50 notes | Hopper Capacity: 300 notes |
| Consumption: ≤ 120W | Power Supply:100-240V AC, 50/60 Hz |
| Net Weight:11.6 kg | Dimensions:309(W)*338(D)*227(H) mm |
| Operating Temperature: 0 – 40℃ | External Interface: RJ-11( RS-232), USB |
| Humidity:20-80%RH | / |
Customer Interfaces:
15’TFT with Touch screen
Receipt Printer:
– 80mm 203DPI graphical thermal printer
– Print speed: 150mm/s
– Roll Diameter: 150-254 mm
Keypad(optional):Tactile 4*4 alphanumeric keypad PCI compliant EPP.
Card Reader(Optional):
– Motorized card reader, Hi-Co & Lo-Co track read
– DIP card reader (opt.)
– Contactless smart card reader/writer (opt.)
– EMV Level 1 and Level 2 compliant
2D Barcode Reader(Optional)
Contactless Card Reader(Optional)
UPS Support(optional)
Controlling Unit:
Windows 10 64BIT 4GB RAM, 256 HDD
LAN, WIFl(optional), COM/USB
Security
Waterproof, dustproof, explosion proof.
UL291 or CEN L safe.
PCI compliant EPP.
EMV Compliant.
DVR system, Cameras and Alarm sensors.
Operating Environment :
Operating Temperature: 0 ~ 40℃
Relative Humidity 20-80%RH.
