OEM/ODM Acceptable, Manufacturer of Kiosks.
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | HE |
| Certification: | CE/CCC/FCC/ROHS/ISO9001 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing (Foam and Wooden Crate) |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per month |
| Logo: | Can Be Designed For You | Name: | Intelligent Cash Deposit Machine |
|---|---|---|---|
| Packaging: | Customized | Graphic/ Photo: | Customized |
| Deviation Of Erro: | ±<1.0% | Ensurance: | 3 Mouth |
| Service Life: | Anti-fishing Design | Support: | OEM/ODM |
| Condition: | New | Monitor Size: | Cold-roll Steel Sheet Or Others |
| Highlight: | Dual Screen Atm Machine,Banking Bill Payment Atm Machine,19'' Screen Atm Machine |
||

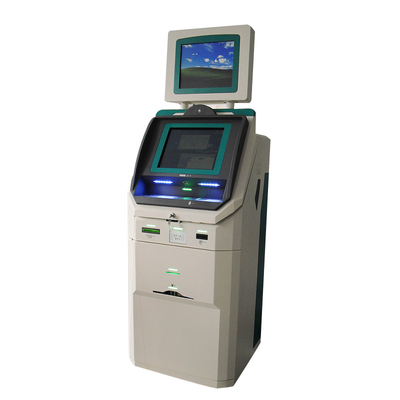

Dual screen atm machine banking bill payment atm for cash in and cash out
Product Description
| Components | Specification | |
| PC (Customizable) | CPU | G2020 / J3160 / I3 / I5 / I7 |
| RAM | 2GB / 4GB / 8GB | |
| HDD / SSD | 500G / 128G | |
| Interface | RS-232 Ports; USB Ports; 10/100M Net Port; Integrated Net Card; Sound Card ; WIFI | |
| Touch Screen | Screen Size | 15'' /17” /19” (optional from 10.1” to 82”) |
| Screen Type | SAW / IR / Capacitive | |
| Resolution | 4096x4096 | |
| Feature | High Transparence, Precision and Durability | |
| Monitor | Screen Size | 15'' /17” /19” (optional from 10.1” to 82”) |
| Brightness | 250/300 /1000 cd/m2 | |
| Contrast | 1000:1 / others | |
| Resolution | 1024X768/ 1280x1024 /1920x1080 / others | |
| Kiosk Cabinet | Material | Cold-rolled steel with1.5mm / 2.0 mm thickness |
| Coating | Car painting technology | |
| Feature | Easy service access through front and back | |
| Color or Logo | Customizable | |
| Parts | Multimedia speakers ,Internal ventilation system | |
| Card Reader | Card Type | Magcard, IC Card, RF Card, Mifare Card, UL Card |
| Interface | RS232 / USB | |
| Encrypted Pin Pad | Key Life Span | 2,000,000 cycles |
| Key Force | 2-3N | |
| Key Trip | >2.5mm | |
| Cash Acceptor | Brand | Cash Code / MEI / ITL / JCM |
| Validation Rate | High than 96% | |
| Capacity | 600 / 1000 / 1500 /2000 / 2200 notes | |
| Printer | Brand | Epson / Custom / Masung |
| Width of Paper | 58mm / 80mm / 112mm | |
| Printing Speed | 150 mm/s | |
| Interface | RS232 / USB | |
| Cash dispenser | Brand | Fujitsu / CDM |
| Cassettes | 1-6 cassettes | |
| Power Supply | AC Input Voltage | 100~240V/AC |
| Frequency | 50Hz to 60Hz | |
| Optional | Card dispenser / Card printer /Camera / Passport scanner / Fingerprint reader / UPS /Coin acceptor / Cash recycler / Barcode Sanner | |
| Package | Safe packing with bubble foam, in wooden case | |
We offer the best hardware solution for your kiosk project according to your specific requirements. Welcome your OEM & ODM inquiry.
