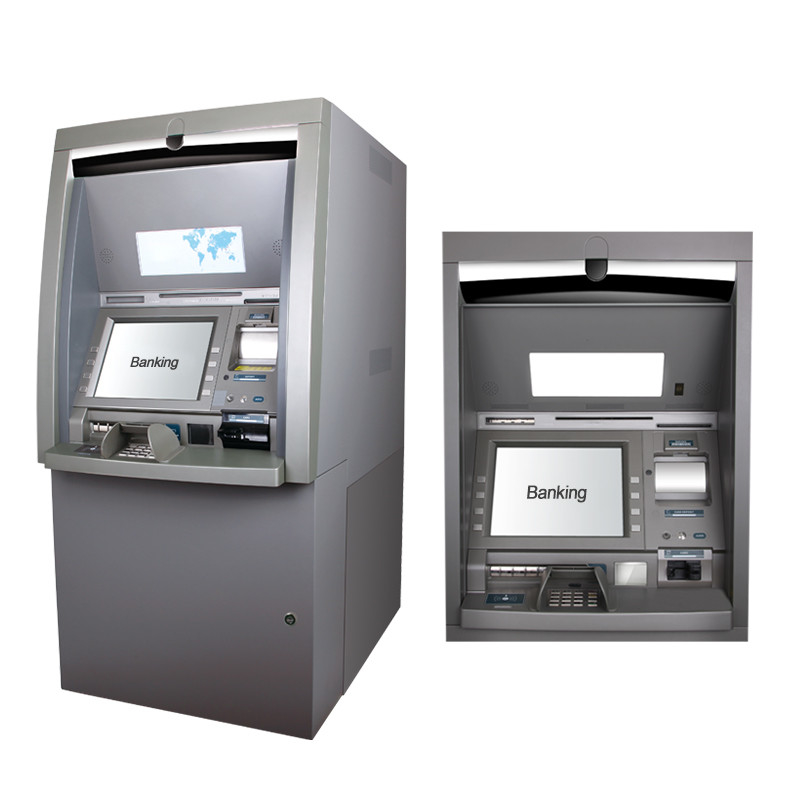

Full Function Automated Teller Machine Cash And Check Mixed Deposit

cash and check mixed deposit Full Function Automated Teller Machine

Product Description

It' s full function ATMs offer you unparalleled performance and flexibility, with rich functionalities including high-capacity banknote dispensing, intelligent cash and check deposit, envelope deposit, barcode scanning, statement printing, and other value-added functionalities. Not only does it carry out self-service transactions that are popular today, but the series also has a modular design that makes it easy for your any future upgrade. The H34N series is your smart choice of full function ATMs that will help you hit your targets and achieve greater success.

Features

High Reliability and Outstanding Performance

The H34N series keeps serving your customers with a wide range of transactions under all weather conditions. Built-in anti-skimming solution, security cameras and DVR guarantee a more secure transaction environment. With high capacity and outstanding performance, the H34N series is designed to easily meet requirement at scenarios with high transaction volumes.

Intelligent Deposit

The integrated cash and check acceptor supports cash and check mixed deposit, delivering fast and reliable deposit transactions for any scenario with high check and cash volume. Supports checks in both E13-B and CMC-7 standards, check endorsement.

Flexible Scalability

With the unrivaled level of functionalities and flexible configuration, the H34N series delivers value-added services like utility payment, card top-up, coin dispensing and statement printing. These new applications will extend normal banking channels and can be used to generate extra income for 3rd party payment solution providers. Customization to your ideal configuration can be easily achieved on the H34N series to realize the full potential of your strategies.

Specifications

Controlling Unit
Intel® Core™ i3/i5/i7 3.3Ghz CPU, 4G RAM (up to 16GB)
500G HDD (Dual HDD support), DVD-RW
Windows® XP / 7 /10
Banknote Processing Unit
High-speed bulk dispenser:
-Dispensing speed: 7 notes per second
-Max. 100 notes per transaction
-Cassette capacity: max. 3,500 notes*
-Max. 4 cassettes
-Reject capacity: max. 300 notes*
-Retract capacity: max. 300 notes*
– OCR for note serial number recognition (opt.)
Banknote & check acceptor (opt.):
-Processing speed: 6 notes or 1 check per second
-Escrow capacity: 100 notes or 50 checks/mixed
-2 cassettes
-Cassette capacity: 2,000 pcs per cassette
-Retract bin capacity: 100 notes
-Reject bin capacity: 50 notes
-Supports 128 denominations
Check processor (opt.)
Coin Dispenser (opt.)
Dispensing speed: 8 coins per second
Hopper capacity: 1.86 liters * 4 hoppers
Customer Interfaces Display:
-15’’ TFT color LCD with 2*4 function keys (touch screen opt.)
Keypad
-Tactile 4*4 alphanumeric keypad
-PCI compliant EPP
Card reader
-DIP card reader, Hi-Co & Lo-Co track (track 1/2/3) read, EMV 4.0 level 1 complaint
-Anti-skimming (opt.)
-Motorized card reader (opt.)
-Contactless smart card reader/writer (opt.)
Receipt printer
-80mm 203DPI graphical thermal printer
-Capture and retract capability
Journal printer (opt.):
-High speed dot matrix journal printer
-Thermal printer
ADA audio (opt.):
-Compliant with ADA, high quality audio and/or headset jack
Barcode scanner (opt.)
-Support 1D and 2D code
A4 Statement Printer (opt.)
UPS (opt.)


Security
UL 291 Level 1 safe
CEN L safe (opt.)
PCI compliant EPP
Electronic lock
Mechanical combination lock (opt.)
Customer awareness mirror
DVR surveillance system (opt.)
Transaction image capture for surveillance (opt.)
SECOne for software and network security (opt.)


Maintenance
10.4’’ LCD service panel with touch screen (available on rear access model)
Front, rear and side access
Communication
Standard TCP-IP connection
Working Environment


Temperature:
H34N and H34ND:
-Indoor:32 F (0℃) to 104 F (40℃)
-Outdoor: -31 F(-35℃) to 122 F(50℃)
(for subzero temperature, optional hearing unit is required)
H34NL:
32 F (0℃) to 104 F (40℃)
Relative humidity: 20% to 95% (40℃, non-condensing)
* The actual capacity is subject to the thickness and fitness of local currency.
