OEM/ODM Acceptable, Manufacturer of Kiosks.
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | HE |
| Certification: | CE/CCC/FCC/ROHS/ISO9001 |
| Model Number: | kiosk touch screen kiosk |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing (Foam and Wooden Crate) |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per month |
| Logo: | Customized | Packaging: | Customized |
|---|---|---|---|
| Graphic: | Customized | Deviation Of Erro: | ±<1.0% |
| Warranty: | 1 Year | After-Sales Service:: | Online Support |
| Camera: | 2MP Camera | Display&Touch: | 21.5" |
| Touch Screen: | True-flat PCAP Touch With Multi-touch Support | Screen Size: | 21.5 Inches |
| Printer: | 3" Thermal Printer W/auto Cutter | ||
| Highlight: | High Resolution Vending Machine,Intel Core I5 DDR4 Vending Machine |
||

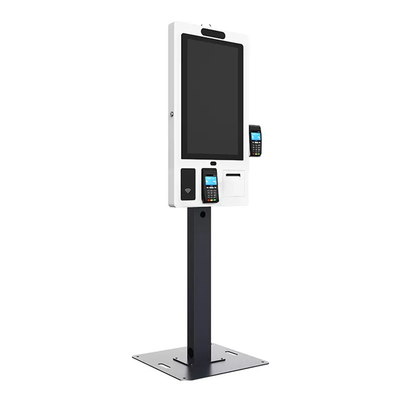

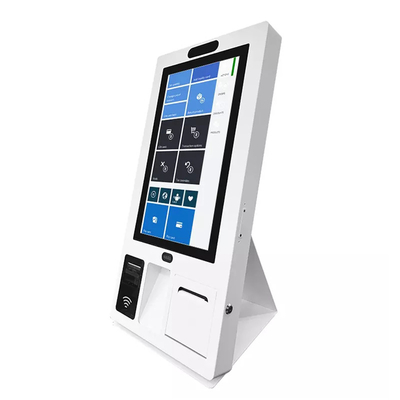

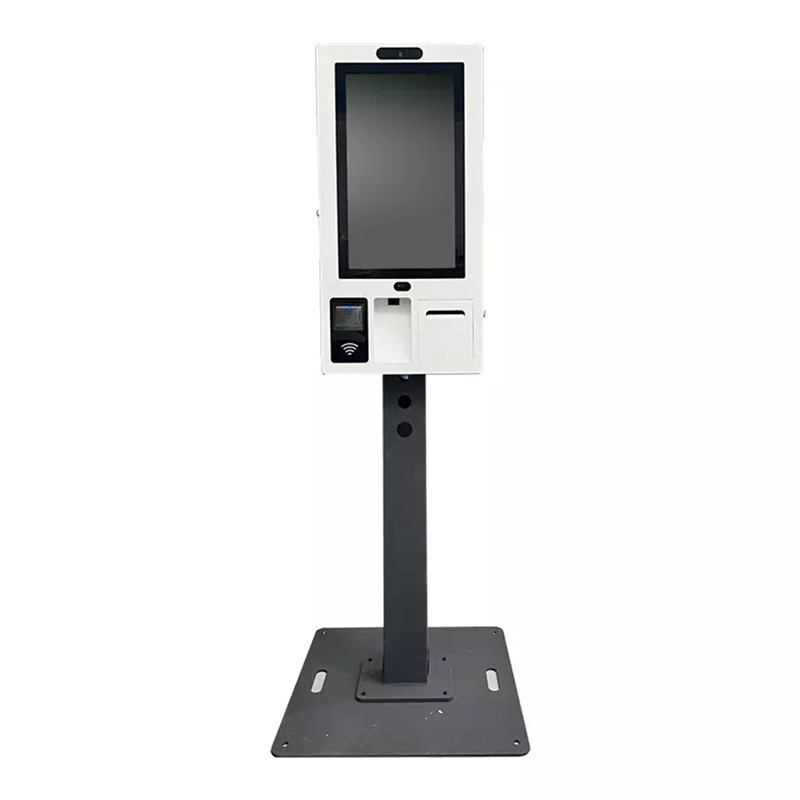

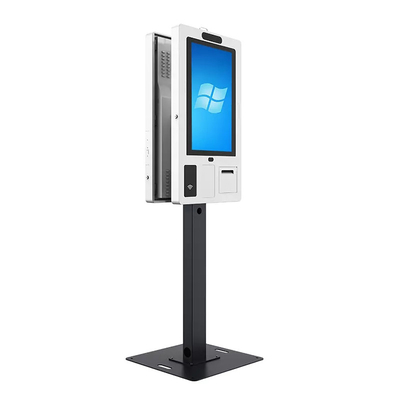

Self Service Payment Kiosk Touch Screen Kiosk For Restaurant Hotel Public Service
Product features:
|
Model Number
|
S22+
|
|||
|
CPU Support
|
Intel Core I3 Seris ,FAN
|
Intel Core I5 Seris,FAN
|
RK3568(2.0GHz)
|
|
|
System Memory
|
1 x DDR3L/DDR4, SO-DIMM, 4GB (Max. 16GB)
|
DDR4,4G(Onboard)
|
||
|
Storage Device
|
1x mSATA / M.2 128G (64G/256G optional )
|
eMMC 32G
|
||
|
Power
|
1 x 12V-5A/60W+ 1 x 24V-2A/48W
|
|||
|
OS Support
|
Win10
|
Android 11.0
|
||
|
Screen Size
|
21.5" TFT LCD Panel
|
|||
|
Brightness
|
250 cd/m²
|
|||
|
Resolution
|
1920*1080
|
|||
|
Touch Screen
|
True-Flat Projected Capacitive Touch
|
|||
|
DC-IN
|
1 x DC In
|
|||
|
CR
|
N/A
|
1 xRJ11
|
||
|
VGA
|
1 xVGA
|
N/A
|
||
|
HDMI
|
1 xHDMI
|
N/A
|
||
|
USB
|
2 x USB 3.0 +6 x USB 2.0 Ports
|
|||
|
LAN
|
1 x LAN (10/100/1000Mb)
|
|||
|
Audio
|
1 x MIC-IN & 1 x LINE-OUT
|
N/A
|
||
|
Serial port
|
1 x DB9(RS-232)
|
1 x RJ12(RS-232)
|
||
|
Printer
|
80mm thermal printer,auto cutter, 170mm/sec (max.)
|
|||
|
Camera
|
5MP Single camera
|
|||
|
Proximity Sensor
|
60-80cm Proximity Sensor
|
|||
|
Speaker
|
2 x 2w Speaker
|
|||
|
WIFI
|
mPCI-E WiFi/BT module
|
WiFi/BT(onboard)
|
||
|
Scanner
|
MP718(USB,1D,2D,Reading precision:=4mil,Dimension:90.5mm*35.4*80.2mm)
|
|||
|
MSR
|
MSR + iButton (Combo) o r MSR +RFID (Combo) ,USB(VCOM optional) ,
1,2,3 Track, ISO7810,7811-1/2/3/4/5,IBM,AAMVA,JIS-2 Standard
|
|||
|
NFC/RFID Reader
|
Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica),
NFC protocols - tag read/write (ISO/IEC-18092)
|
|||
|
Status light
|
Printer status light
(Red light indicates error or out of thermal paper ,Blue light indicates working status )
|
|||
|
System FAN
|
4 x Fans(Manufacturer default)
|
|||
* There are 3 types for you to choose,they are desktop, wall mounted, floor standing
* 5 MP Camera: Slashproof and dust- prevent design, excellent cooling system.
* Payment Device Cradle: Invisible, neat and safe cable management.
* Support 2 kiosks Status Indicator Wifi antenna: Able to support 2 kiosks.
* Support both Windows and Android.
* Thermal Printer Proximity Sensor: Modular design, with print, proximity sensor.
Application scenarioes
Airport, Port, Train Station, Bus Station, Shopping Mall, Chain Store, Gym, Museum, Concert, Theater, University, Library, Hotel Lobby, Restaurant, Coffee, Bar, Healthcare Center, Hospital, Bank, Business Building, Financial Service Center, Tourism and many other public areas.
