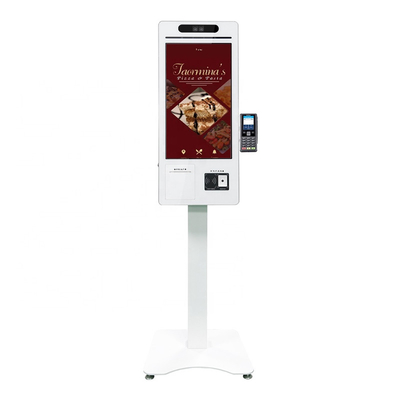

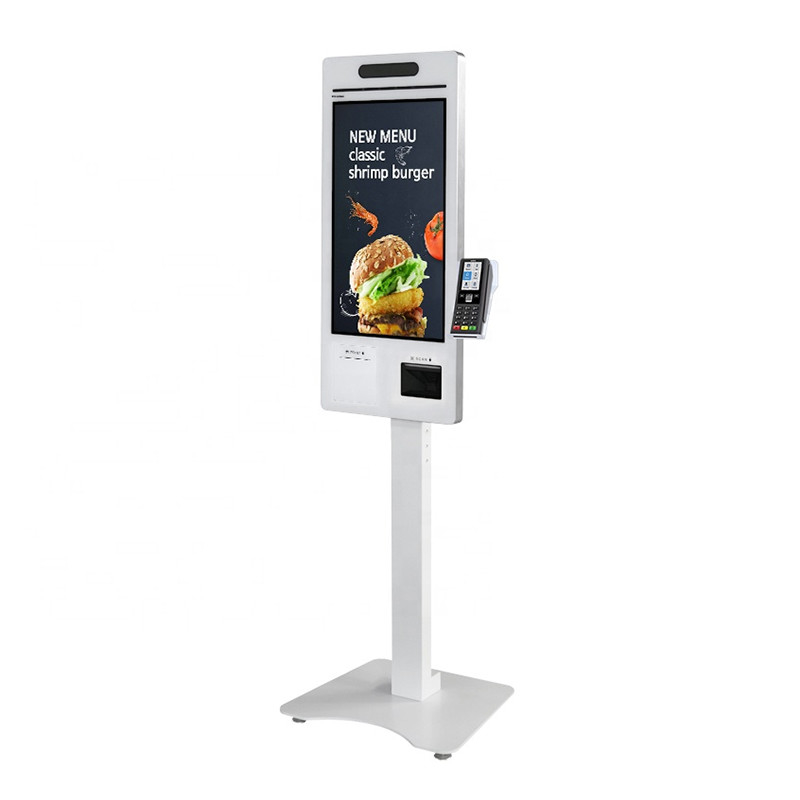

24" Touch Screen Self Service Ordering Machine Payment POS System Kiosk

24" Touch Screen Self Service Ordering Machine Payment POS System Kiosk

  • 24" Touch Screen Self Service Ordering Machine Payment POS System Kiosk
  • 24" Touch Screen Self Service Ordering Machine Payment POS System Kiosk
24" Touch Screen Self Service Ordering Machine Payment POS System Kiosk
Product Details:
Place of Origin: China
Brand Name: HE
Certification: CE/CCC/FCC/ROHS/ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Foam and Wooden Crate
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 pieces per month
Contact Now
All Products
Vending Machine Kiosk (83)
Self Service Kiosk (55)
ATM Cash Machine (143)
Cash Deposit Machine (65)
Self Service POS Kiosk (23)
Self Payment Kiosk (27)
Self Ordering Kiosk (52)
Ticket Kiosk Machine (22)
Currency Exchange Kiosk (10)
Government Kiosk (17)
Video Teller Machine (15)
Bitcoin Kiosk (9)
ATM Spare Parts (167)
Kiosk Parts (17)
Banking Machine Module (116)
Detailed Product Description
Name: Self-service Ordering Kiosk Machine Installation: Floor Standing
Screen Size: 24 Inch Color: Black White
Panel Brand: 100% A+ Grade Brand Panel Material: Metal Case + Toughened Glass Panel
Warranty: One Year Response: 3ms
Highlight:

Touch Screen Self Service Ordering Machine

,

POS Self Service Ordering Machine

,

Floor Standing Self Ordering Kiosk

24" Touch Screen Self Service Ordering Machine Payment POS System Kiosk Machine



Panel Specification
ITEM NO.: FY-PO Self Order Kiosk
Screen size: 297527mm (24inch) 337*599(27inch) / (customized)
Screen resolution: 1920*1080
Display color: 16.7M
Contrast 3000:1
Brightness (nits): 350 nits
Visual angle: 178°/178°
Response: 3ms
Touch screen: 10-point capacitive touch screen



Configuration
Main board: Android RK3288,COTEX-A17 Quad-Core,1.8 GHZ;
RAM: DDR3, 4GBDDR3, 4GB 2GB DDR3 (4GB DDR3 optiona)
ROM 8G EMMC 5.0((16GB/32GB/64GB optional)
Interface: MIPI output*1; eDP output *1; LVDS output1 *1;5*USB; TTL serial-port *3;Amplifier output
Network support: 100M Ethernet ,WIFI, blue booth4.0(4G&external GPS optional )
Panel life: Above 50,000hrs
Operating System: Android 5.1 (Upgrade to android 7.1)
Remark : Android RK3399, J1900, i3, i5, i7 series and other configurations are also available .



This is the basic module for reference, all the features can be customized.



Appearance specifications
Over all size: 850*403*85mm(24inch); 1070*502*90.5mm(32inch)
Surface: Anti-scratched tempered glass
Color: White color (customized color)
Power supply: AC 110–240, 50-60Hz
Honeycomb packing: 950*503*185mm / 26kg (24inch) 1200*620*230mm / 46kg(32inch)
Thermal printer Front opening thermal printer,with automatic cutter (58 & 80mm paper)
Scanners: QR code / Barcode scanner
Slot for POS machine: POS machine is provided by the customer
Camera: optional 2 megapixels camera,Monocular & binocular cameras face recognition
Card reader:optional IC card reader, RFID reader, NFC card reader
Self order kiosk Play advertising when no one touches, recommend special packages, discounts, etc.
Application: Self order kiosk for restaurant/ store/supermarket/ new retail /station/ airport
Function Restaurant self order kiosk,store self payment kiosk,pharmacy self checkout machine,resort self service kiosk(self order kiosk, self payment kiosk)

24" Touch Screen Self Service Ordering Machine Payment POS System Kiosk 024" Touch Screen Self Service Ordering Machine Payment POS System Kiosk 124" Touch Screen Self Service Ordering Machine Payment POS System Kiosk 2

If you are interested in our kiosks, please kindly inform us your detailed requirements as below.



   1. Size of the Screen.

   2. Operation system you want (If you want computer built-in, please inform us the CPU, RAM, SSM and all related).

   3.Need touch screen or not.

   4. Need Wifi or not.

   5. LCD or LED panels you need.



If you order from us, you will enjoy these service:



   1. Fast production & delivery time.

   2. One piece is also fine.

   3. OEM & ODM is possible(both appearance and function).

24" Touch Screen Self Service Ordering Machine Payment POS System Kiosk 3
